5' E12 528i Single components for headlight

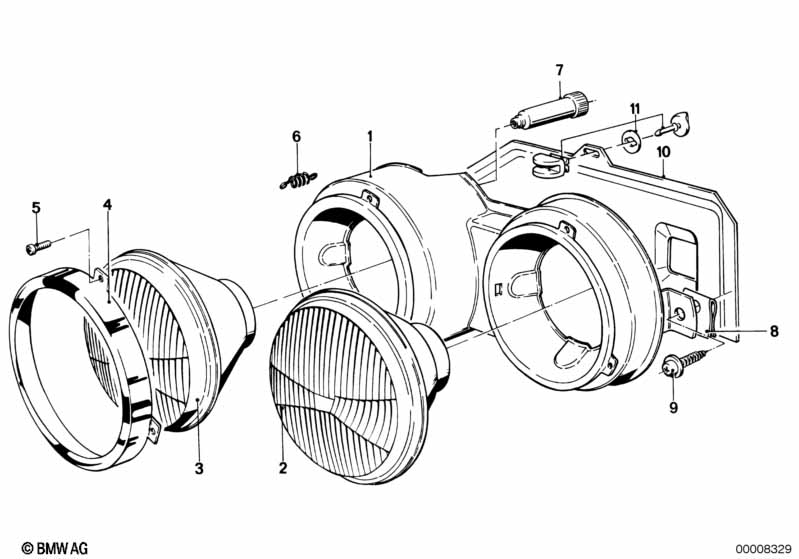

Single components for headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting frame left 1 63121360195 $235.48
01 Supporting frame right 1 63121360196 $271.80 ENDED
02 Low beam insert (sealed beam) 2 07/1981 63121373061 $36.05 ENDED
02 Low beam insert (sealed beam) 2 63121373059 ENDED, +core
03 High beam insert (sealed beam) 2 09/1980 63118750240 $27.64
03 High beam insert (sealed beam) 2 09/1980 63121373060 $25.82 ENDED
04 Glass holding frame 4 63118750256 $24.83 ENDED
04 Glass holding frame 4 63121362477 $32.43
05 Fillister head self-tapping screw B3,9X8 X 63121359777 $0.42
06 Tension spring 4 63121359719 $2.68
07 Adjusting nut 8 63121354449 $1.61 ENDED
08 Body nut ST6,3-1-ZN 6 07/1981 07129925742 $0.25 ENDED
08 Body nut ST6,3-1 6 07/1981 07129901663 $0.20 ENDED
08 Body nut ST6,3-1-ZNS3 6 07129904231
09 Sheet metal screw 6 63121352070 $0.62
10 Covering left 1 51711820251 $11.84
10 Covering right 1 51711820252 $11.84
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
