3' F30 328i High-pressure pump/Tubing

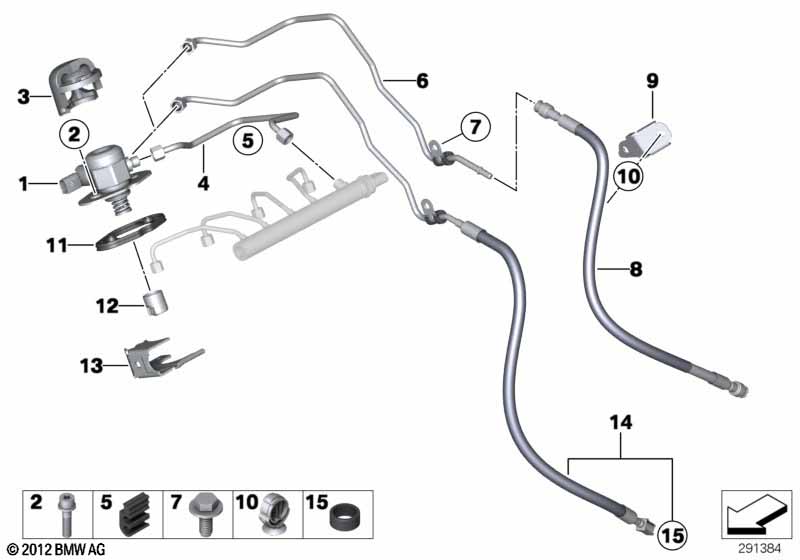

High-pressure pump/Tubing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Except for the profile seal (item 11),
no further sealing rings are required
at the high-pressure pump.
01 High-pressure pump 1 03/2014 13518604229
only in conjunction with
-- High pressure pipe 1 03/2014 13537585426
-- Adapter HMK 1 03/2014 12518638006
-- Profile-gasket 1 03/2014 11127588416
01 High-pressure pump 1 13518604229
only in conjunction with
-- High pressure pipe 1 13537585426
-- Profile-gasket 1 11127588416
For vehicles with
Flexible Fuel
Except for the profile seal (item 11),
no further sealing rings are required
at the high-pressure pump.

S1AEA=Yes
01 High-pressure pump 1 03/2014 13518635048
only in conjunction with
-- High pressure pipe 1 03/2014 13537585426
-- Adapter HMK 1 03/2014 12518638006
-- Profile-gasket 1 03/2014 11127588416
01 High-pressure pump 1 13518635048
only in conjunction with
-- High pressure pipe 1 13537585426
-- Profile-gasket 1 11127588416
02 Isa screw with washer M6X25-U1 2 07/2014 07129905597
02 Isa screw with washer M6X25-U1 2 13517632572
03 Acoustic cover, high-pressure pump 1 13517629169
04 High pressure pipe 1 13537585426
05 Damping element 1 13537585498
06 Feed line 1 13537585415
07 Hex bolt M7X18-U1-ZNFESW 1 13537583747 $0.73
08 Fuel hose 1 11/2013 13537629639
08 Fuel hose 1 13537629639
09 Bracket fuel pipe 1 13537585501
10 Cable holder 1 12521732532 $0.70
11 Profile-gasket 1 11127588416
12 Cam follower 1 11327601233 +core
only in conjunction with
-- High pressure pipe 1 13537585426
-- Isa screw with washer M6X25-U1 2 13517632572
-- Profile-gasket 1 11127588416
13 Protection plate 1 13517629155
Notes
  • +core = plus core charge (possibility of a return of the old part)
