3' F30 320i Body skeleton

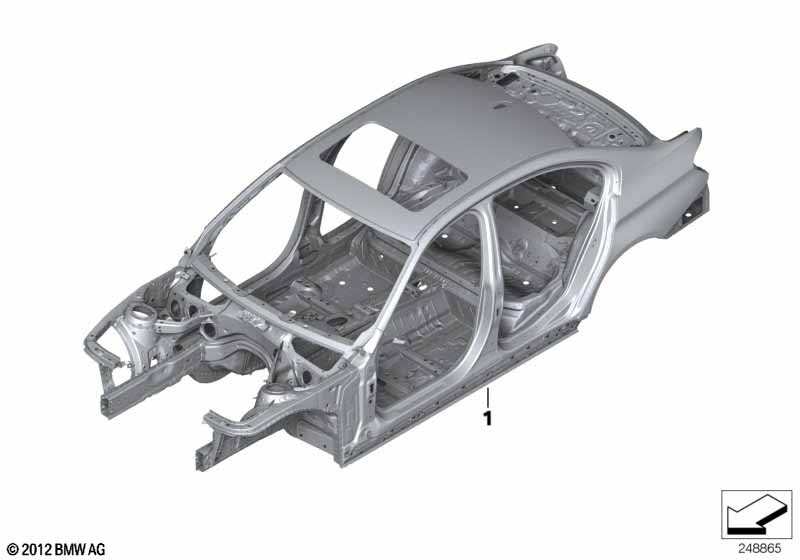

Body skeleton
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Important notice!
Only for use with support bearing,
support bearing version 01/2015 and
newer must be installed (screwed on
with 5 M8 threaded studs).
01 Body skeleton without chassis number BASIS 1 01/2015 41007298230
Required for repair
-- Protective foil vehicle identif.number 1 01/2015 07147220652
The following information is required
when ordering: - Vehicle identification
number
Important notice!
Only for use with support bearing,
support bearing version 01/2015 and
newer must be installed (screwed on
with 5 M8 threaded studs).
01 Body skeleton with chassis number BASIS 1 01/2015 41002213064 NoS
Required for repair
-- Protective foil vehicle identif.number 1 01/2015 07147220652
For vehicles with
Glass roof, electrical
Important notice!
Only for use with support bearing,
support bearing version 01/2015 and
newer must be installed (screwed on
with 5 M8 threaded studs).

S403A=Yes
01 Body skeleton without chassis number BASIS 1 01/2015 41007298234
Required for repair
-- Protective foil vehicle identif.number 1 01/2015 07147220652
For vehicles with
Glass roof, electrical
The following information is required
when ordering: - Vehicle identification
number
Important notice!
Only for use with support bearing,
support bearing version 01/2015 and
newer must be installed (screwed on
with 5 M8 threaded studs).

S403A=Yes
01 Body skeleton with chassis number BASIS 1 01/2015 41002213069 NoS
Required for repair
-- Protective foil vehicle identif.number 1 01/2015 07147220652
Notes
  • NoS = No Stock (Part, central, not in stock.)
