3' F30 320i CHAMP 2

CHAMP 2

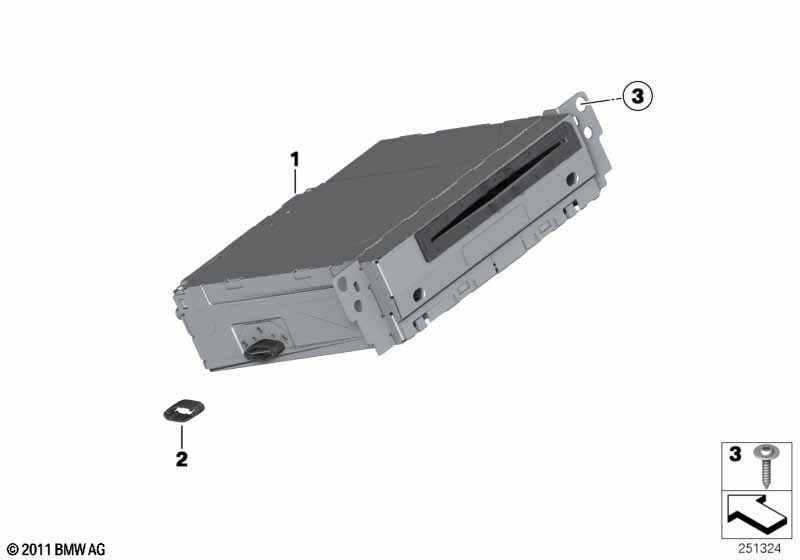

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i A t t e n t i o n ! The defective used
part
must be forwarded through the exchange
part return loop. It is essential to
observe
PARTS_051_09_14 product information
bulletin!
Attention!
In the event that the head unit is
stolen, it is necessary to consult with
the
insurance company to determine whether
an exchange part
may be installed and whether the
associated flat rate deposit may be
applied
.
If the insurance demands that a
new part must be used, then the
corresponding part number must be taken
from the EPC
.
For vehicles with
Navigation system Business























S606A=Yes
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner

S3AGA=Yes

S5DLA=Yes

S606A=Yes

S654A=Yes
01 Exchange CHAMP 2 1 07/2012 65129262731
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner

S3AGA=Yes

S5DLA=Yes

S606A=Yes

S654A=No
01 Exchange CHAMP 2 1 07/2012 65129262731
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner

S3AGA=Yes

S5DLA=No

S606A=Yes

S654A=Yes
01 Exchange CHAMP 2 1 07/2012 65129262731
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner

S3AGA=Yes

S5DLA=No

S606A=Yes

S654A=No
01 Exchange CHAMP 2 1 07/2012 65129262731
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner

S3AGA=No

S5DLA=Yes

S606A=Yes

S654A=Yes
01 Exchange CHAMP 2 1 07/2012 65129262731
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner

S3AGA=No

S5DLA=Yes

S606A=Yes

S654A=No
01 Exchange CHAMP 2 1 07/2012 65129262731
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner

S3AGA=No

S5DLA=No

S606A=Yes

S654A=Yes
01 Exchange CHAMP 2 1 07/2012 65129262731
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.

S3AGA=No

S5DLA=No

S606A=Yes

S654A=No

S6NKA=Yes

S6NLA=Yes
01 Exchange CHAMP 2 1 07/2012 65129262730
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.

S3AGA=No

S5DLA=No

S606A=Yes

S654A=No

S6NKA=Yes

S6NLA=No
01 Exchange CHAMP 2 1 07/2012 65129262730
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.

S3AGA=No

S5DLA=No

S606A=Yes

S654A=No

S6NKA=No

S6NLA=Yes
01 Exchange CHAMP 2 1 07/2012 65129262730
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Business
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.

S3AGA=No

S5DLA=No

S606A=Yes

S654A=No

S6NKA=No

S6NLA=No
01 Exchange CHAMP 2 1 07/2012 65129262729
02 Alignment element 2 03/2014 65129230353
03 Oval-head screw with washer DELTA PT4X20 2 03/2014 07149185673
