3' F30 325d Cable Harness Fixings

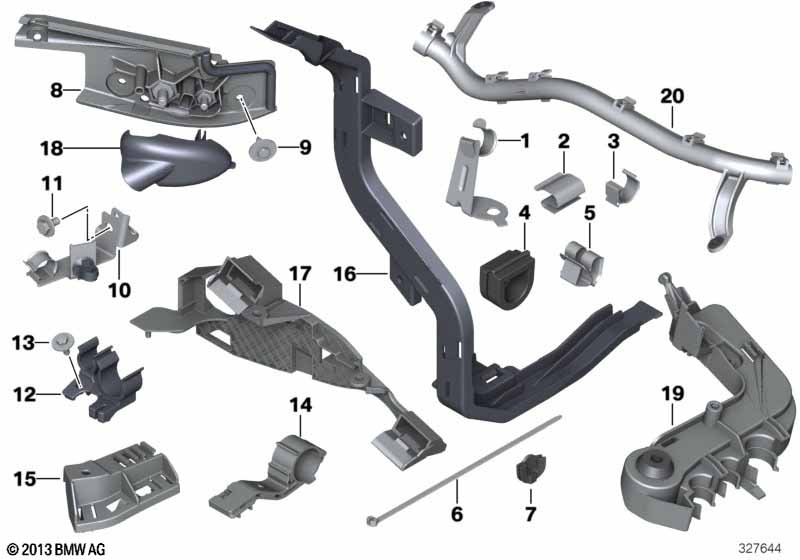

Cable Harness Fixings
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Holder 1 12528510205
05 Clip 1 12521437136 $0.63
For vehicles with
Cold-climate version

S842A=Yes
06 Cable tie 1 12511742867 $2.73
07 Rubber grommet 1 12518508689
08 Bulkhead seal 1 07/2014 12527632000
08 Bulkhead seal 1 07/2014 12528621100
09 Hex bolt TS5X17 SW8 D=22 2 07149126886
10 Holder 1 12528515679
11 Hex bolt with washer M6X14U2-ZNNIVSI 1 07119905952 $0.91
12 Holder 1 12518514473
13 Hex head screw 1 07147151963 $0.29
18 Covering cap 1 07/2014 12527632001
18 Covering cap 1 07/2014 12528621101
