3' F31 320d Window mounting parts

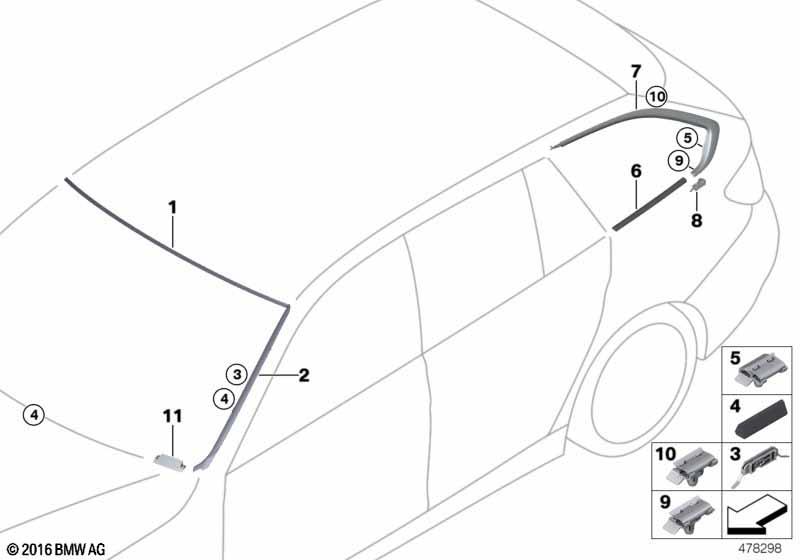

Window mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover, windshield, top 1 51317258053
02 Drip moulding, left 1 51317258187
02 Drip molding, right 1 51317258188
03 Clip, drip molding X 51137258183
04 Bump stop X 51317288462
05 Clamp GRAU 2 51137157098 $1.34
06 seal, rear left side window 1 51377336791
06 seal, rear right side window 1 51377336792
For vehicles with
Exterior parts, satin-gloss aluminum
and
High gloss shadow line

S3L8A=No

S760A=Yes
06 seal, rear left side window GLANZSCHWARZ 1 51377307841
06 seal, rear right side window GLANZSCHWARZ 1 51377307842
For vehicles with
Luxury Line
and
Exterior parts, satin-gloss aluminum
and
High gloss shadow line

P7S2A=Yes

S3L8A=No

S760A=No
06 seal, rear left side window CHROM 1 51377496145
06 seal, rear right side window CHROM 1 51377496146
For vehicles with
Luxury Line
and
Exterior parts, satin-gloss aluminum
and
High gloss shadow line

P7S2A=No

S3L8A=Yes

S760A=No
06 seal, rear left side window ALU MATT 1 51357312903
06 seal, rear right side window ALU MATT 1 51357312904
07 Trim strip, side frame, left 1 51337263223
07 Trim strip, side frame, right 1 51337263224
For vehicles with
Exterior parts, satin-gloss aluminum
and
High gloss shadow line

S3L8A=No

S760A=Yes
07 Trim strip, side frame, left GLANZSCHWARZ 1 51337263239
07 Trim strip, side frame, right GLANZSCHWARZ 1 51337263240
For vehicles with
Luxury Line
and
Exterior parts, satin-gloss aluminum
and
High gloss shadow line

P7S2A=Yes

S3L8A=No

S760A=No
07 Trim strip, side frame, left CHROM 1 51357258343
07 Trim strip, side frame, right CHROM 1 51357258344
For vehicles with
Luxury Line
and
Exterior parts, satin-gloss aluminum
and
High gloss shadow line

P7S2A=No

S3L8A=Yes

S760A=No
07 Trim strip, side frame, left ALU MATT 1 51337298925
07 Trim strip, side frame, right ALU MATT 1 51337298926
08 Connection rail, left 1 51377317039
08 Connection rail, right 1 51377317040
09 Clamp 2 51337309097
10 Clamp SCHWARZ X 51137157096 $1.05
11 Holder for vehicle identification number 1 51487221921
