3' F31 320d Glazing

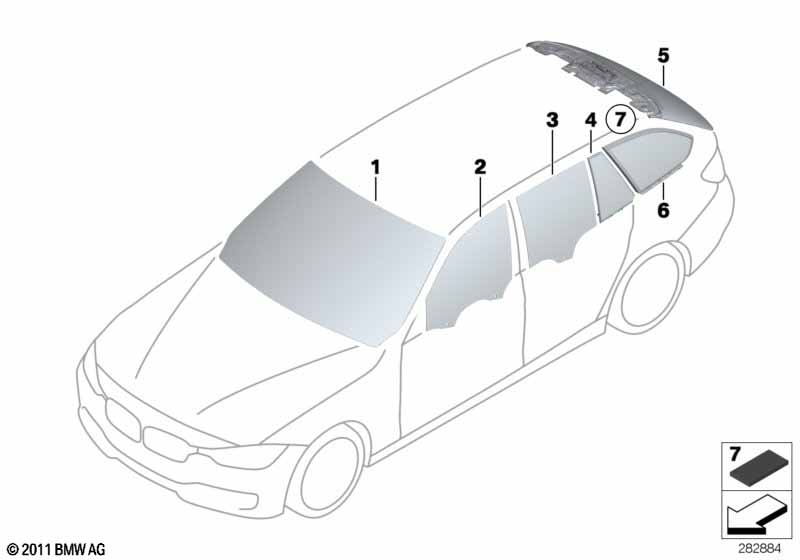

Glazing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Instructions for removing RLS, see
Repair manual
51 31 011
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=Yes

S5ASA=Yes

S610A=No

S8THA=Yes
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=Yes

S5ASA=Yes

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=Yes

S5ASA=No

S610A=No

S8THA=Yes
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=No

S5ASA=Yes

S610A=No

S8THA=Yes
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=No

S5ASA=Yes

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=No

S5ASA=No

S610A=No

S8THA=Yes
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=Yes

S5ASA=Yes

S610A=Yes

S8THA=Yes
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=Yes

S5ASA=Yes

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=Yes

S5ASA=No

S610A=Yes

S8THA=Yes
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=No

S5ASA=Yes

S610A=Yes

S8THA=Yes
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=No

S5ASA=Yes

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=No

S5ASA=No

S610A=Yes

S8THA=Yes
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=Yes

S5ASA=Yes

S610A=Yes

S8THA=Yes
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=Yes

S5ASA=Yes

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=Yes

S5ASA=No

S610A=Yes

S8THA=Yes
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=No

S5ASA=Yes

S610A=Yes

S8THA=Yes
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=No

S5ASA=Yes

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S5ADA=No

S5ASA=No

S610A=Yes

S8THA=Yes
01 Windshield, green, rain sensor / HUD KAFAS / RLSBS 1 51317258072
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=Yes

S5ASA=Yes

S610A=No

S8THA=Yes
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=Yes

S5ASA=Yes

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=Yes

S5ASA=No

S610A=No

S8THA=Yes
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=No

S5ASA=Yes

S610A=No

S8THA=Yes
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=No

S5ASA=Yes

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Lane departure warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S5ADA=No

S5ASA=No

S610A=No

S8THA=Yes
01 Windshield, green, rain/light/fog 1 51317258069
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=Yes

S521A=No

S534A=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band 1 51317258064
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=Yes

S521A=Yes

S534A=Yes

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=Yes

S521A=Yes

S534A=Yes

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=Yes

S521A=Yes

S534A=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=Yes

S521A=Yes

S534A=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=Yes

S521A=No

S534A=Yes

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=Yes

S521A=No

S534A=Yes

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=Yes

S521A=No

S534A=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=Yes

S521A=Yes

S534A=Yes

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=Yes

S521A=Yes

S534A=Yes

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=Yes

S521A=Yes

S534A=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=Yes

S521A=Yes

S534A=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=Yes

S521A=No

S534A=Yes

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=Yes

S521A=No

S534A=Yes

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=Yes

S521A=No

S534A=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band RLSBS 1 51317258065
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=Yes

S521A=No

S534A=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Green windshield, grey schade band 1 51317258064
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=Yes

S534A=Yes

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=Yes

S534A=Yes

S5ADA=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=Yes

S534A=No

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=Yes

S534A=No

S5ADA=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=No

S534A=Yes

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=No

S534A=Yes

S5ADA=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=No

S534A=No

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=Yes

S534A=Yes

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=Yes

S534A=Yes

S5ADA=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=Yes

S534A=No

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=Yes

S534A=No

S5ADA=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=No

S534A=Yes

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=No

S534A=Yes

S5ADA=No

S5AGA=No

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=No

S534A=No

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=No

S8THA=No
01 Windshield, green, rain/light/fog 1 51317258063
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=Yes

S534A=Yes

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=Yes

S534A=Yes

S5ADA=No

S5AGA=No

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=Yes

S534A=No

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=Yes

S534A=No

S5ADA=No

S5AGA=No

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=No

S534A=Yes

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=No

S534A=Yes

S5ADA=No

S5AGA=No

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=Yes

S3APA=No

S521A=No

S534A=No

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=Yes

S534A=Yes

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=Yes

S534A=Yes

S5ADA=No

S5AGA=No

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=Yes

S534A=No

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=Yes

S534A=No

S5ADA=No

S5AGA=No

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=No

S534A=Yes

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=No

S534A=Yes

S5ADA=No

S5AGA=No

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China
and
Windshield with grey wedge
and
Rain sensor
and
Automatic air conditioning
and
Lane departure warning
and
Lane-change warning
and
Driving Assistant
and
Head-up display
and
Road sign detection

L8AAA=No

S3APA=No

S521A=No

S534A=No

S5ADA=No

S5AGA=Yes

S5ASA=No

S610A=Yes

S8THA=No
01 Windshield, green, rain sensor / HUD RLSBS 1 51317258066
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
01 Green windshield 1 51317258055
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
01 Green windshield 1 51317258055
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
01 Green windshield 1 51317258057
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
Required for repair
-- Cleaner R1 100ML 1 83192211217
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
01 Green windshield 1 51317258057
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
Required for repair
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
-- Cover, windshield, top 1 51317258053
-- Drip moulding, left 1 51317258187
-- Drip molding, right 1 51317258188
-- Bump stop 11 51317288462
-- Clamp 2 51437321215
-- Sound insulation f apron L=1430MM 1 51487325890
For vehicles with
National version China

L8AAA=No
02 Door window, front left 1 51337259825
02 Door window, front right 1 51337259826
For vehicles with
National version China

L8AAA=Yes
02 Door window, front left 1 51332458071
02 Door window, front right 1 51332458072
03 Door window, rear left 1 51357259841
03 Door window, rear right 1 51357259842
For vehicles with
Sun protection glazing

S420A=Yes
03 Door window, rear left SSG 1 51357259843
03 Door window, rear right SSG 1 51357259844
04 Fixed door window, left 1 51357269555
Important notice on standardization!
The window supplied as a replacement
part is equipped with more plugs than
the
original and also differs in appearance.
Reason:
Only the top-level version is now
being supplied. Any plugs that will not
be used on the individual vehicle must
be tied back out of the way.
04 Fixed door window, right 1 51357269556
Important notice on standardization!
The window supplied as a replacement
part is equipped with more plugs than
the
original and also differs in appearance.
Reason:
Only the top-level version is now
being supplied. Any plugs that will not
be used on the individual vehicle must
be tied back out of the way.
For vehicles with
Sun protection glazing

S420A=Yes
04 Fixed door window, left SSG 1 51357269559
Important notice on standardization!
The window supplied as a replacement
part is equipped with more plugs than
the
original and also differs in appearance.
Reason:
Only the top-level version is now
being supplied. Any plugs that will not
be used on the individual vehicle must
be tied back out of the way.
04 Fixed door window, right SSG 1 51357269560
Important notice on standardization!
The window supplied as a replacement
part is equipped with more plugs than
the
original and also differs in appearance.
Reason:
Only the top-level version is now
being supplied. Any plugs that will not
be used on the individual vehicle must
be tied back out of the way.
For vehicles with
National version China
and
Sun protection glazing

L8AAA=No

S420A=Yes
05 Rear window SSG 1 51317300721
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
For vehicles with
National version China
and
Sun protection glazing

L8AAA=Yes

S420A=Yes
05 Rear window SSG 1 51317300721
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
For vehicles with
National version China
and
Sun protection glazing

L8AAA=No

S420A=No
05 Rear window 1 51317263163
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192289285
For vehicles with
National version China
and
Sun protection glazing

L8AAA=Yes

S420A=No
05 Rear window 1 51317263163
only in conjunction with
-- Repair flat rate, window, cold, 1 hr. SET 1 83192180001
For vehicles with
National version Korea
and
Sun protection glazing
and
TV function

L802A=No

S420A=No

S601A=Yes
06 Side window, rear left 1 51377286167 +core
06 Side window, rear right 1 51377286168 +core
For vehicles with
National version Korea
and
Sun protection glazing
and
TV function

L802A=Yes

S420A=No

S601A=Yes
06 Side window, rear left 1 51377259713
06 Side window, rear right 1 51377259714
For vehicles with
National version Korea
and
Sun protection glazing
and
TV function

L802A=Yes

S420A=No

S601A=No
06 Side window, rear left 1 51377259713
06 Side window, rear right 1 51377259714
For vehicles with
National version Korea
and
Sun protection glazing
and
TV function

L802A=No

S420A=No

S601A=No
06 Side window, rear left 1 51377259713
06 Side window, rear right 1 51377259714
For vehicles with
National version Korea
and
Sun protection glazing
and
TV function

L802A=Yes

S420A=Yes

S601A=Yes
06 Side window, rear left SSG CHROM 1 51377259247
06 Side window, rear right SSG CHROM 1 51377259248
For vehicles with
National version Korea
and
Sun protection glazing
and
TV function

L802A=Yes

S420A=Yes

S601A=No
06 Side window, rear left SSG CHROM 1 51377259247
06 Side window, rear right SSG CHROM 1 51377259248
For vehicles with
National version Korea
and
Sun protection glazing
and
TV function

L802A=No

S420A=Yes

S601A=No
06 Side window, rear left SSG CHROM 1 51377259247
06 Side window, rear right SSG CHROM 1 51377259248
For vehicles with
National version Korea
and
Sun protection glazing
and
TV function

L802A=No

S420A=Yes

S601A=Yes
06 Side window, rear left SSG 1 51377286175 +core
06 Side window, rear right SSG 1 51377286176 +core
07 Hook&loop fastener 4 51377147127 $0.48
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)

Copyright © RealOEM.com
