3' F31 316d Intake manifold-supercharg.air duct/AGR

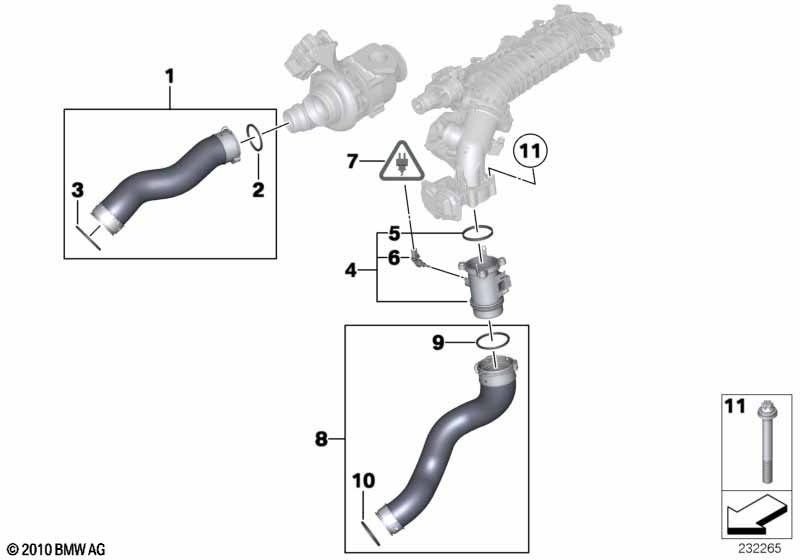

Intake manifold-supercharg.air duct/AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charge air line 1 11617810616 ENDED
02 Preformed seal 1 11618506782
03 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
03 Preformed seal 1 13718596850
04 Charge air tube 1 07/2012 11618506359 ENDED
04 Charge air tube 1 07/2012 11614744639 ENDED
04 Charge air tube 1 11618519492
05 Profile-gasket 1 11618509400
06 Intake air temperature sensor 1 13628519445
08 Charge air line 1 10/2013 11614742748 ENDED
08 Charge air line 1 11617810617
09 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
09 Preformed seal 1 13718596850
10 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
10 Preformed seal 1 13718596850
11 ASA bolt with washer M6X52-U1-ZNNIV 3 07129907128
Notes
  • ENDED = the part has been discontinued (no longer available).
