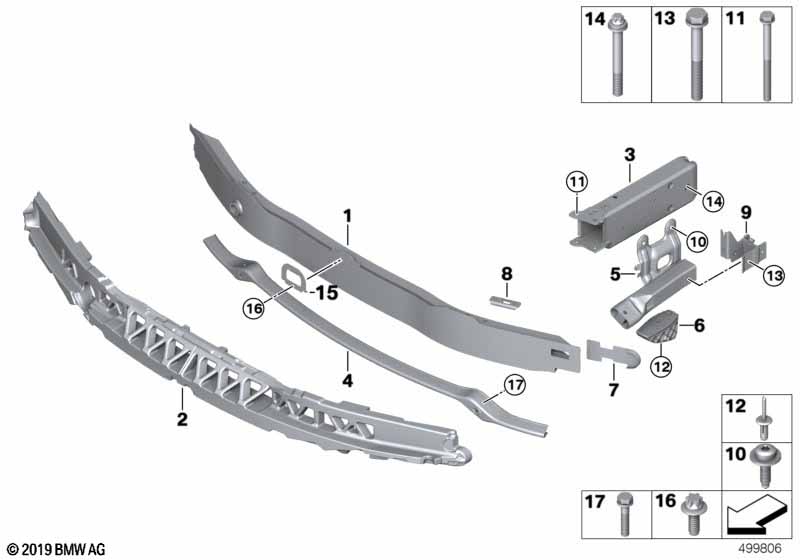

4' F33 420d Carrier, front

Carrier, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Mount, bumper, front, top 1 51117275178 +core
For vehicles with
M Aerodynamics package

S715A=Yes
02 Shock absorber front M-ECE 1 51118054544
For vehicles with
M Aerodynamics package

S715A=No
02 Shock absorber front ECE 1 51117289911
03 Deformation element, front left 1 51117289907
03 Deformation element, front right 1 51117289908
04 Mount, bumper, front, lower 1 51647266325
For vehicles with
M Aerodynamics package

S715A=Yes
04 Mount, bumper, front, lower M 1 51648054575
For vehicles with
Active cruise control+Stop&Go function
and
M Aerodynamics package

S5DFA=Yes

S715A=No
04 Mount, bumper, front, lower 1 51647279726
05 Deformation element, front left 1 51117289909
05 Deformation element, front right 1 51117289910
For vehicles with
M Aerodynamics package

S715A=Yes
05 Deformation element left M 1 51118051189
05 Deformation element right M 1 51118051190
06 Door edge guard 2 51117268479 +core
For vehicles with
Active pedestrian protection

S8TFA=Yes
07 Cover for impact absorber 1 51117302950
08 Nut plate, outside 2 51117286015
09 Support front axle support, left 1 51647245795
09 Support for front axle subframe, right 1 51647245796
10 Torx-bolt with washer ISA M6X20 4 07119907285
11 Hex bolt M8X103 4 07147321202
12 Blind rivet 2 07147234212
13 Hex bolt with washer M8X70-Z1-ZNS3 4 07119906675
14 Hex bolt M12X1,5X80 10.9 6 07119906292
For vehicles with
National version China

L8AAA=No
15 Support 1 51117371572
16 ASA screw, self-threading M6X16 1 34509804151
17 Hex bolt with washer M6X45-U1 2 07119905547 $1.17
Notes
  • +core = plus core charge (possibility of a return of the old part)
