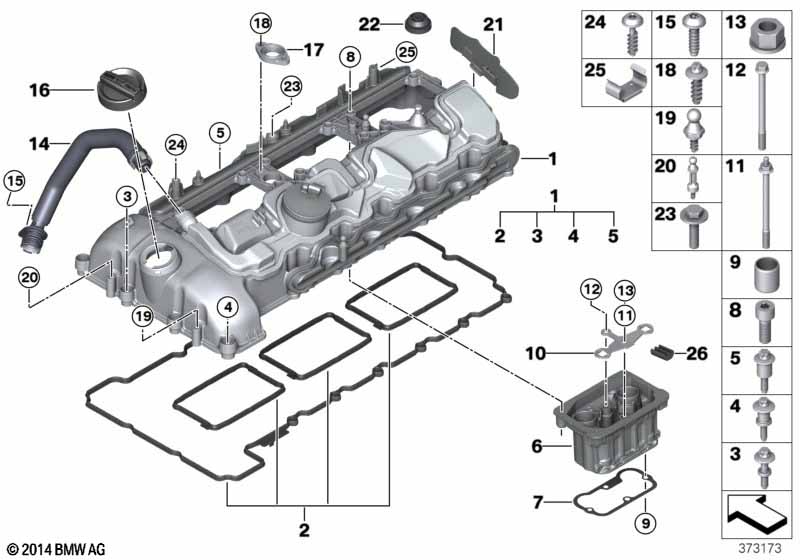

4' F83 M4 M4 Cylinder head cover/Mounting parts
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11127846359 | ||||||
| 02 | Profile-gasket | 1 | 11127587804 | ||||||
| 03 | ASA-Bolt | M6X30 | 14 | 03/2019 | 11127576310 | ||||
| 03 | Collar screw | M6X30 | 14 | 11129454322 | |||||
| 04 | ASA-Bolt | M6X36.5 | 10 | 11127584156 | |||||
| 05 | ASA-Bolt | M6X32.5 | 8 | 11127544369 | $4.22 | ||||
| 06 | Spark plug recess insert | 3 | 11127605104 | ||||||
| 07 | Gasket | 3 | 11127589830 | ||||||
| 08 | ISA screw | M6X35 | 6 | 11127648655 | |||||
| 09 | Dowel | D=7,5MM | 6 | 11127606504 | |||||
| 10 | Bracket injector | 3 | 13647595405 | ||||||
| 11 | Flange screw | M7X90 | 3 | 13537603773 | |||||
| 12 | Flange screw | M7X90 | 3 | 13537603841 | |||||
| 13 | Hex nut | AM5-8-ZNNIV SI | 3 | 07129904319 | $0.36 | ||||
| 14 | Vent hose | 1 | 11127850244 | ||||||
| 15 | Torx screw | 5X18 | 1 | 13627531817 | $0.60 | ||||
| 16 | Cap for oil filler | 1 | 11128655331 | ||||||
| 17 | Gasket-flange | 1 | 11377502022 | $8.43 | |||||
| 18 | ASA screw, self-threading | M6X18 | 2 | 11367609963 | |||||
| 19 | Ball pin | 1 | 11127593207 | ||||||
| 20 | Ball pin | 1 | 11127848457 | ||||||
| 21 | Holder | 1 | 12527849608 | ||||||
| 22 | Rubber buffer | 1 | 13717571356 | $3.41 | |||||
| 23 | Hex bolt with washer | M6X25-U2 | 1 | 07119905871 | $0.59 | ||||
| 24 | Screw | K60X22 | 2 | 11617533331 | $0.75 | ||||
| 25 | Holder | 2 | 11787589137 | ||||||
| 26 | Damping element | 3 | 13537582343 |
