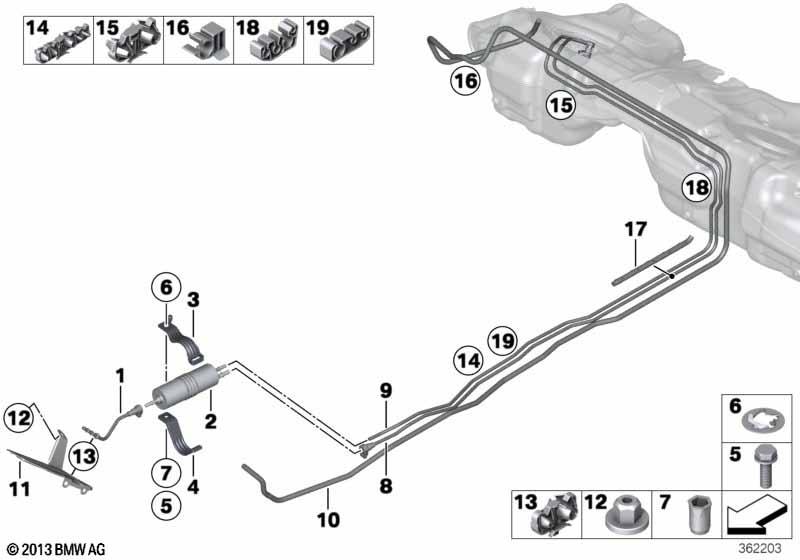

4' F83 M4 M4 Fuel line / fuel filter
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China or Outside fuel filter |
L8AAA=Yes S1AKA=Yes |
|||||||
| 01 | Front fuel feed line | 1 | 16127271019 | ||||||
| 02 | Fuel filter | 1 | 09/2016 | 16127233840 | ENDED | ||||
| 02 | Fuel filter | 1 | 16127451424 | ||||||
| 03 | Bracket fuel strainer | 1 | 16127292265 | ||||||
| 04 | Bow | 1 | 16127292266 | ||||||
| 05 | Hex bolt with washer | M8X25 ZNS3 | 1 | 07119904793 | $0.36 | ||||
| 06 | Axial securing clip | 1 | 13328511095 | ||||||
| 07 | Blind rivet nut, flat headed | M8 | 1 | 07147132312 | |||||
| 08 | Rear fuel feed line | 1 | 16127318359 | ||||||
| 09 | Rear fuel return line | 1 | 16127318358 | ||||||
| 10 | Scavenge air line | 1 | 16127244795 | ||||||
| 11 | Guard plate, fuel lines | 1 | 16127244171 | ||||||
| 12 | Plastic nut | 3 | 07147336362 | ||||||
| 13 | Wire clip, dual | 1 | 16127277360 | ||||||
| 14 | Wiring clip, 5-clamp | 4 | 16127258750 | ||||||
| 15 | Wire clip, dual | D8,12 | 2 | 16127258752 | |||||
| 16 | Wiring clip, triple | D8,8,12 | 2 | 16127258753 | |||||
| 17 | Guard cover | 2 | 16127318360 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
