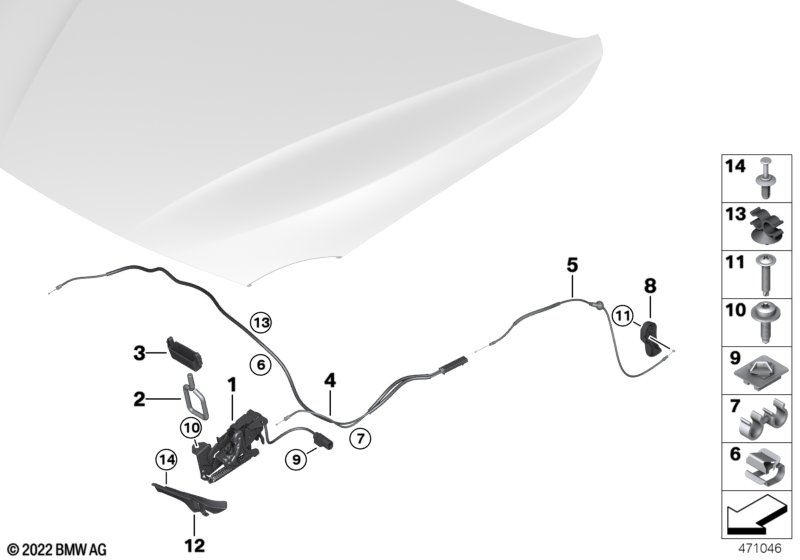

4' F83 M4 M4 Hood locking system
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Right lower part of hood lock | 1 | 51237242549 | +core | |||||
| with switch | |||||||||
| 01 | Left lower part of hood lock | 1 | 51237242548 | +core | |||||
| 02 | Catch bracket | 2 | 51237247080 | ||||||
| 03 | Twist protection | 2 | 51237247079 | ||||||
| Observe repair instructions REP-51 23 211! |
|||||||||
| 04 | Bowden cable, hood, front | 1 | 51237239240 | ENDED, +core | |||||
| only in conjunction with | |||||||||
| -- | Pipe clip | 2 | 17127609160 | ||||||
| 04 | Bowden cable, hood, front | 1 | 03/2015 | 51237396161 | ENDED | ||||
| only in conjunction with | |||||||||
| -- | Pipe clip | 2 | 03/2015 | 17127609160 | |||||
| 04 | Bowden cable, hood, front | 1 | 51237411315 | ||||||
| only in conjunction with | |||||||||
| -- | Pipe clip | 2 | 17127609160 | ||||||
| 05 | Bowden cable, hood, rear | 1 | 51237313782 | ||||||
| 07 | Hose clamp | 1 | 13901720201 | $1.13 | |||||
| 08 | Lever f engine hood mechanism | 1 | 51237309606 | ||||||
| 09 | Bracket, plug connection bleu | 1 | 61136912396 | ||||||
| 11 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 1 | 07146959925 | $0.29 | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
