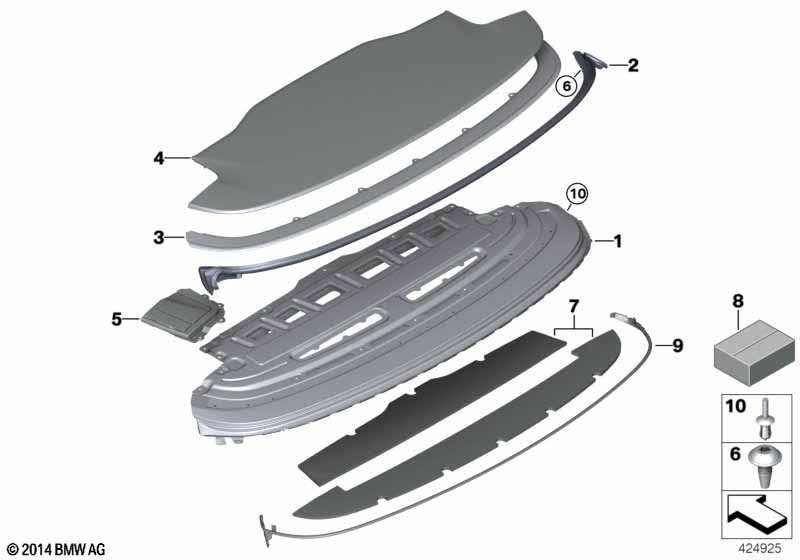

4' F83 M4 M4 Folding top compartment lid
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Folding top compartment lid | 1 | 51177352873 | ||||||
| 02 | Sealing, folding top flap | 1 | 51767295228 | ||||||
| For vehicles with High gloss shadow line |
S760A=Yes |
||||||||
| 03 | Molding, folding top lid | GLANZSCHWARZ | 1 | 54378036672 | $200.84 | ||||
| For vehicles with High gloss shadow line |
S760A=No |
||||||||
| 03 | Molding, folding top lid | ALU SATINIERT | 1 | 51177345534 | |||||
| 04 | Package tray | SCHWARZ | 1 | 51177319576 | |||||
| 05 | Flap for linkage exit, left | SCHWARZ | 1 | 54377321659 | |||||
| 05 | Flap for linkage exit, right | SCHWARZ | 1 | 54377321660 | |||||
| 06 | Fillister head screw with collar | M5X16MM | 4 | 07149158182 | $0.25 | ||||
| 07 | Soundproofing | 1 | 54377390685 | ||||||
| 08 | Mounting element including spacers | 1 | 54377312862 | ||||||
| 08 | Reinforcement left | 1 | 54377348721 | ENDED | |||||
| 08 | Reinforcement right | 1 | 54377348722 | ENDED | |||||
| 09 | Sealing tape | 1 | 51767373130 | ||||||
| 10 | Expanding rivet | 4 | 51718226190 | $0.29 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
