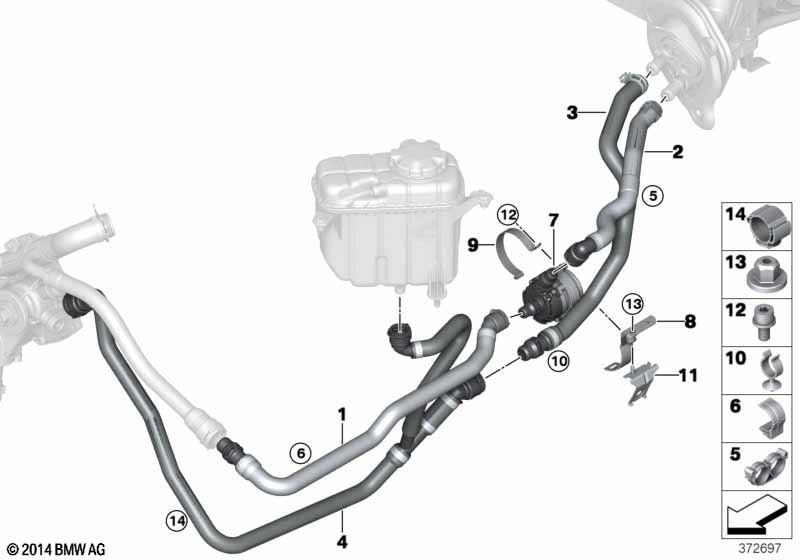

4' F83 M4 M4 Coolant hoses / elec. coolant pump
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, engine supply-coolant pump | 1 | 64219307240 | ||||||
| 02 | Hose f engine inlet and heater radiator | 1 | 64219307241 | ||||||
| 03 | Hose f radiator and engine return | 1 | 64219307242 | ||||||
| 04 | Hose f radiator and engine return | 1 | 64219307243 | ||||||
| 05 | Hose clamp | 1 | 64216951110 | ||||||
| 06 | Hose clamp | 1 | 64219238370 | ||||||
| 07 | Electric water pump | 1 | 11/2019 | 64119147359 | |||||
| 07 | Electric water pump | 1 | 64116834917 | ||||||
| 08 | Bracket additional water pump | 1 | 64539322071 | ||||||
| 09 | Clamp for auxiliary coolant pump | 1 | 64539322072 | ||||||
| 10 | Hose clamp | 1 | 64219322073 | ||||||
| 11 | Shut-off valve bracket | 1 | 64219230343 | ||||||
| 12 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 1 | 07129904819 | $0.38 | ||||
| 13 | Plastic nut | 2 | 07147336362 | ||||||
| 14 | Hose clamp | D=23MM | 2 | 64219222656 |
