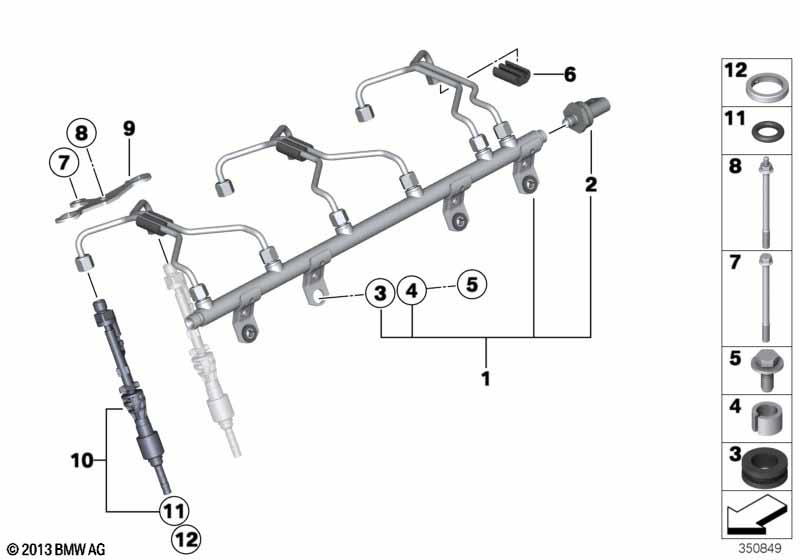

4' F83 M4 M4 High-pressure rail/injector/bracket
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | High-pressure rail | 1 | 13537848363 | ||||||
| 02 | Sensor, high-pressure | 1 | 13537620946 | +core | |||||
| 03 | Decoupling element | 4 | 13537628063 | ||||||
| 04 | Sleeve | 4 | 13537628064 | ||||||
| 05 | Hex bolt | M7X18-U1-ZNFESW | 4 | 13537583747 | $0.73 | ||||
| 06 | Damping element | 3 | 13537582343 | ||||||
| 07 | Flange screw | M7X90 | 3 | 13537603841 | |||||
| 08 | Flange screw | M7X90 | 3 | 13537603773 | |||||
| 09 | Bracket injector | 3 | 13647595405 | ||||||
| 10 | RP injector | EU6 | 6 | 05/2014 | 13647639994 | ||||
| Required for repair | |||||||||
| -- | Decoupling element | 6 | 05/2014 | 13537577649 | |||||
| 10 | RP injector | EU6 | 6 | 05/2014 | 08/2015 | 13648625397 | |||
| Required for repair | |||||||||
| -- | Decoupling element | 6 | 05/2014 | 08/2015 | 13537577649 | ||||
| 10 | RP injector | EU6 | 6 | 08/2015 | 13647639994 | ||||
| Required for repair | |||||||||
| -- | Decoupling element | 6 | 08/2015 | 13537577649 | |||||
| 11 | Gasket ring | 6 | 13537591006 | ||||||
| 12 | Decoupling element | 6 | 13537577649 | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
