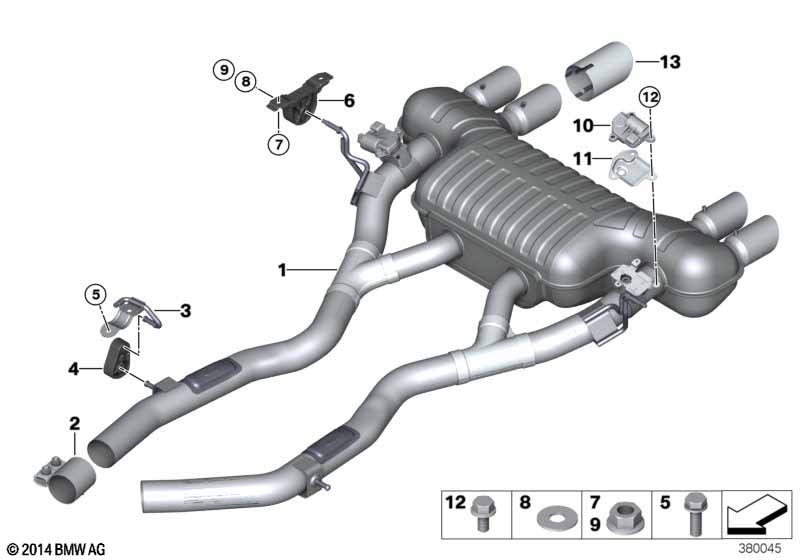

4' F83 M4 M4 Exhaust system, rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler with exhaust flap | 1 | 18307851179 | ||||||
| For vehicles with Competition package |
S7MAA=Yes |
||||||||
| 01 | Rear muffler with exhaust flap | 1 | 18307854736 | ||||||
| 02 | Clamping bush | D=65MM | 2 | 18307536426 | $50.38 | ||||
| 03 | Holding strap left | 1 | 18207851181 | ||||||
| 03 | Retaining bracket, right | 1 | 18207851182 | ||||||
| 04 | Rubber Mounting | 2 | 18307583940 | $16.30 | |||||
| 05 | Hex bolt with washer | M8X25 ZNS3 | 2 | 07119904793 | $0.36 | ||||
| 06 | Rubber Mounting | 2 | 18207500281 | $20.43 | |||||
| 07 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | ||||
| 08 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | ||||
| 09 | Hex nut wiht flange | M8 | 2 | 18307620549 | |||||
| 10 | Actuator drive, exhaust flap | 2 | 18307851568 | ||||||
| 11 | Heat shield for rear muffler | 2 | 18307853851 | ||||||
| 12 | Hex bolt | M6X16 | 3 | 18308623584 | |||||
| For vehicles with Competition package |
S7MAA=No |
||||||||
| 13 | Tailpipe tip, chrome | 4 | 18107848537 | ||||||
| For vehicles with Competition package |
S7MAA=Yes |
||||||||
| 13 | Tailpipe tip, black chrome | 4 | 18107853892 | ||||||
