4' F83 M4 M4 GS7D36SG oil pan

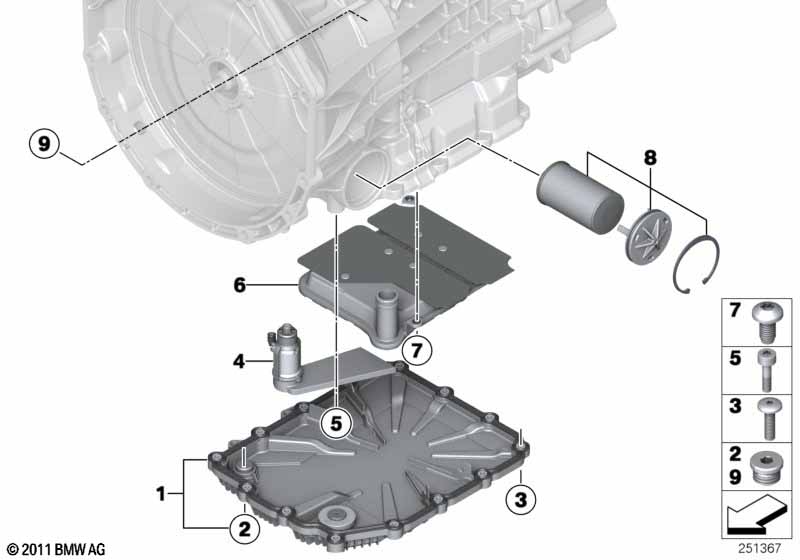

GS7D36SG oil pan
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
M double-clutch transmiss. w/Drivelogic

S2MKA=Yes
01 Oil Pan 1 05/2016 28107842385 $379.55 ENDED
only in conjunction with
-- Countersunk screw M6X24 14 05/2016 28107842386 $2.02
01 Oil Pan 1 28108070791
only in conjunction with
-- Countersunk screw M6X24 14 28107842386 $2.02
02 Oil drain plug 1 28107842383
03 Countersunk screw M6X24 14 28107842386 $2.02
04 Sucking jet pump 1 28107842838
05 Fillister-head screw M8X20 1 28107842839
06 Suction filter unit 1 28107850148
07 Countersunk screw M6X14 2 28107842829
08 Repair kit for pressure filter 1 28107842840
09 Screw plug M18X1,5X12 1 28107850241
Notes
  • ENDED = the part has been discontinued (no longer available).
