4' F83 M4 M4 Seals

Seals

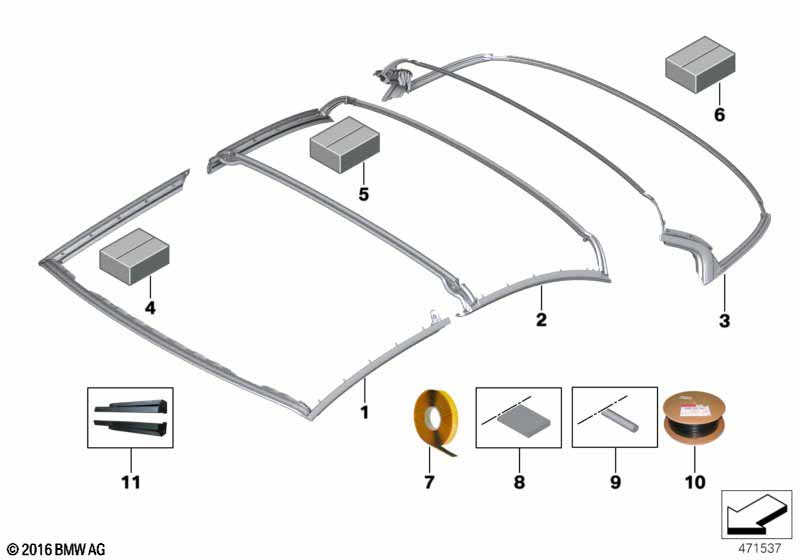

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For exchanging the sealing, roof shell
center
the set of inserts must be ordered!
Before ordering the seal
Observe PuMA measure 62648947!
01 Seal, roof shell, front CHROM 1 54377307190 ENDED
01 Seal, roof shell, front ALU MATT 1 54377307191 ENDED
01 Seal, roof shell, front ALU MATT 1 10/2014 54377415360
01 Seal, roof shell, front CHROM 1 10/2014 54377415361
For vehicles with
High gloss shadow line
Before ordering the seal
Observe PuMA measure 62648947!

S760A=Yes
01 Seal, roof shell, front GLANZSCHWARZ 1 54377358146 ENDED
01 Seal, roof shell, front GLANZSCHWARZ 1 10/2014 54377415362
Before ordering the seal
Observe PuMA measure 62648947!
02 Seal for roof tray, center CHROM 1 54377307192 ENDED
only in conjunction with
02 Seal for roof tray, center ALU MATT 1 54377307193 ENDED
only in conjunction with
-- Set of inserts 1 54377439891
02 Seal for roof tray, center ALU MATT 1 10/2014 54377415363
only in conjunction with
02 Seal for roof tray, center CHROM 1 10/2014 54377415364
only in conjunction with
-- Set of inserts 1 10/2014 54377439891
For vehicles with
High gloss shadow line
Before ordering the seal
Observe PuMA measure 62648947!

S760A=Yes
02 Seal for roof tray, center GLANZSCHWARZ 1 54377906191 ENDED
only in conjunction with
-- Set of inserts 1 54377439891
02 Seal for roof tray, center GLANZSCHWARZ 1 10/2014 54377415365
only in conjunction with
-- Set of inserts 1 10/2014 54377439891
Before ordering the seal
Observe PuMA measure 62648947!
03 Seal for roof tray, rear CHROM 1 54377307194 ENDED
03 Seal for roof tray, rear ALU MATT 1 54377307195 ENDED
03 Seal for roof tray, rear ALU MATT 1 10/2014 54377415366
03 Seal for roof tray, rear CHROM 1 10/2014 54377415367
For vehicles with
High gloss shadow line
Before ordering the seal
Observe PuMA measure 62648947!

S760A=Yes
03 Seal for roof tray, rear GLANZSCHWARZ 1 54377906192 ENDED
03 Seal for roof tray, rear GLANZSCHWARZ 1 10/2014 54377415368
04 Fastening set, gasket 1 54377175577 $27.83
05 Fastening set, gasket 1 54377175578 $18.57
06 Fastening set, gasket 1 54377175579 $12.28
07 Butyl tape Terostat 81 15X1,5MMX10 M 1 83190153321 $36.57
08 Butyl tape Terostat 81 20X1,5MM, 1M TU 1 81220441264
08 Butyl tape Terostat 81 1M, TU 1 81220442714
09 Butyl cord D=4MM, L=10M 1 83222159535
10 Butyl cord Terostat 81 D=7MM, L=66M 1 83190416659
11 Set of inserts 1 54377439891
Notes
  • ENDED = the part has been discontinued (no longer available).
