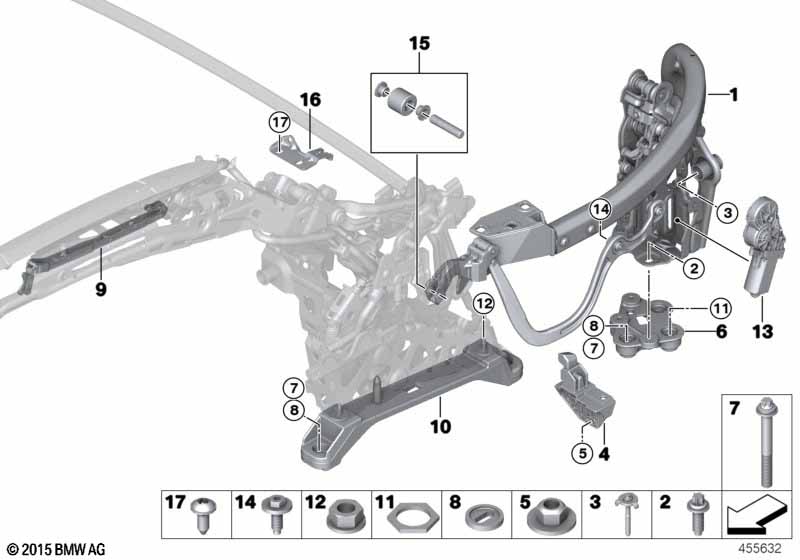

4' F83 M4 M4 Mount and joint components
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear mechanism, left | 1 | 54377401031 | ||||||
| 01 | Rear mechanism, right | 1 | 54377401032 | ||||||
| 02 | ASA-Bolt | M8X25 | 6 | 07147316809 | |||||
| 03 | ASA bolt with washer | M8X65 | 2 | 07147316084 | |||||
| 04 | Support, left | 1 | 54377290351 | ENDED | |||||
| 04 | Support, left | 1 | 54377453347 | ||||||
| 04 | Support, right | 1 | 54377290352 | ENDED | |||||
| 04 | Support, right | 1 | 54377453348 | ||||||
| 05 | Hex nut | BM6-8-ZNS3 | 4 | 07129904870 | $0.36 | ||||
| 06 | Main console mount, rear module, left | 1 | 54377375257 | ||||||
| 06 | Main console mount, rear module, right | 1 | 54377375258 | ||||||
| 07 | ASA-Bolt | M8X60 | 6 | 07129907328 | |||||
| 08 | Washer | 6 | 07149110673 | $1.27 | |||||
| 09 | Hinge left | 1 | 54377190551 | $110.41 | |||||
| 09 | Hinge right | 1 | 54377190552 | $110.41 | |||||
| 10 | Main console mount, left | 1 | 54377290345 | ||||||
| 10 | Main console mount, right | 1 | 54377290346 | ||||||
| 11 | Hex nut | M24X1 | 6 | 07146952441 | $2.16 | ||||
| 12 | Hex nut | M8 | 4 | 07129908668 | |||||
| 13 | Drive, locking mechanism | VORN | 2 | 54377355824 | |||||
| only in conjunction with | |||||||||
| -- | ISA screw | M6X40 10.9 | 2 | 11667564953 | $1.07 | ||||
| 14 | Hex bolt | 4 | 07147131649 | ||||||
| 15 | Roll pin | 2 | 54377431093 | ||||||
| 16 | Base plate left | 1 | 54377197981 | $86.34 | |||||
| 16 | Base plate right | 1 | 54377197982 | $86.34 | |||||
| 17 | Fillister head screw | M8X20 | 4 | 54377197984 | $5.28 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
