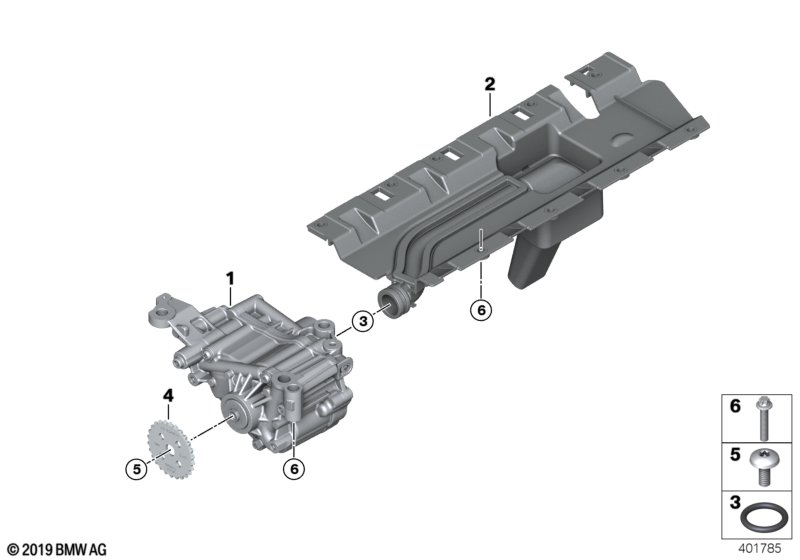

4' F83 M4 M4 Lubrication system/Oil pump
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||
| 01 | Oil pump | 1 | 03/2016 | 11417846388 | ENDED | ||||
| 01 | Oil pump | 1 | 11418011851 | ||||||
| 02 | Suction pipe | 1 | 11417846384 | ||||||
| 03 | O-ring | 24,8X3 | 1 | 11417527092 | $6.08 | ||||
| 04 | Sprocket | 1 | 11417519870 | $15.00 | |||||
| 05 | Torx screw | M8X20 | 1 | 11417520144 | $1.03 | ||||
| 06 | Set, alu bolts oil pump/oil pick-up pipe | 1 | 11117853941 | ||||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
|||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
