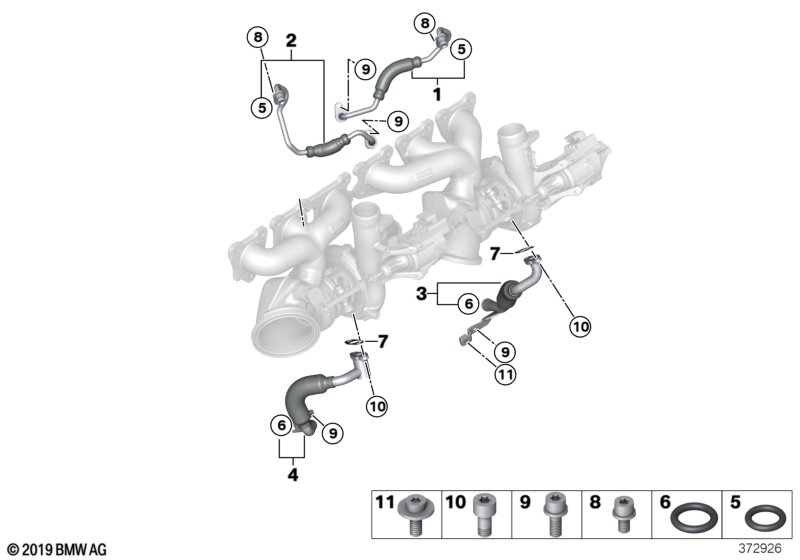

4' F83 M4 M4 Oil supply for turbocharger
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pipe inlet | 1 | 11427848522 | ||||||
| 02 | Oil pipe inlet | 1 | 11427848524 | ||||||
| 03 | Oil pipe outlet | 1 | 11427848525 | ||||||
| 04 | Oil pipe outlet | 1 | 11427848526 | ||||||
| 05 | O-ring | 10X2,5 | 4 | 07119907330 | |||||
| 06 | O-ring | 15X1,78 | 2 | 11427590577 | |||||
| 07 | Gasket Asbestos Free | 2 | 11427577017 | $1.75 | |||||
| 08 | ISA screw | M6X12 | 2 | 07129904831 | $1.20 | ||||
| 09 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 4 | 07129904819 | $0.38 | ||||
| 10 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | |||||
| 11 | ISA screw | M6X16-U2-8.8-ZN | 1 | 07129906916 |
