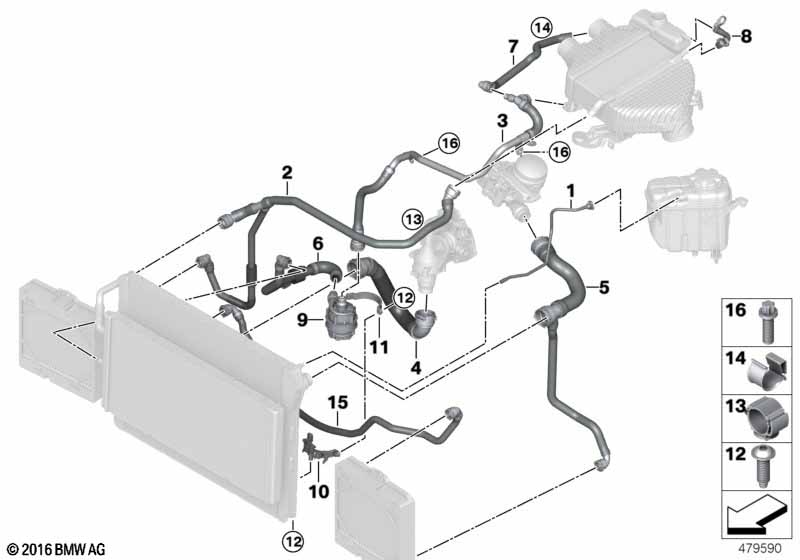

4' F83 M4 M4 Cooling system coolant hoses
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent pipe | 1 | 17122284686 | ||||||
| 02 | Line from radiator- | 1 | 17122284691 | ||||||
| 03 | Line, charge air cooler-coolant pump | 1 | 17122284862 | ||||||
| 04 | Hose from radiator bottom - thermostat | 1 | 11537848502 | ||||||
| 05 | Hose, radiator-engine | 1 | 11537848501 | ||||||
| 06 | Line from radiator- | 1 | 17122284690 | ||||||
| 07 | Hose, expansion tank- | 1 | 17122284689 | ||||||
| 08 | Hose, expansion tank- | 1 | 17122284692 | ||||||
| 09 | Auxiliary water pump | 1 | 11518600442 | ||||||
| 10 | Bracket for coolant pump, electric | 1 | 17117850616 | ||||||
| 11 | Support | 1 | 17127847846 | ||||||
| 12 | Screw self-tapping | D6X20 ZNS3 | 2 | 17117536971 | $1.12 | ||||
| 13 | Hose clamp | D=23MM | 1 | 17127619358 | |||||
| 14 | Cable holder | 1 | 07147590403 | ||||||
| 15 | Hose, remote radiator- | 1 | 17122284688 | ||||||
| 16 | Torx bolt | M6X20-ZNNIV SI | 2 | 07129905568 | $0.44 |
