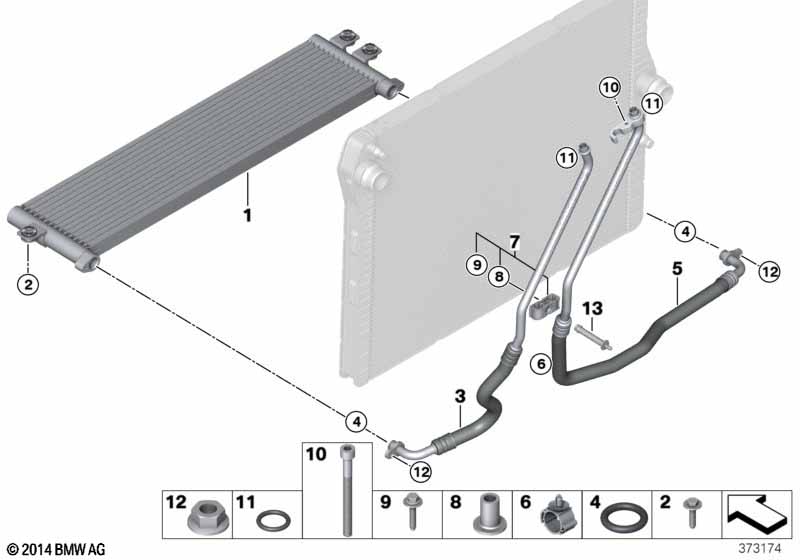

4' F83 M4 M4 Engine oil cooling

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Engine oil cooler		1			17212284540
02	Hex bolt with washer	M8X35	3			07119906034	$1.09
03	Engine oil cooler pipe, flow		1			17222358290
04	O-ring	13,94X2,62	2			17227613656
05	Engine oil cooler pipe, return		1			17222358291
06	Hose clamp	D=23MM	1			17127619358
07	Pipe clip		1			17227575461	$0.42
08	Spacer sleeve		1			17227579121	$3.32
09	Hex bolt with washer	M6X30 ZNNIV	1			07119905727
10	Isa screw with washer	M6X65-U0	1			07129906569
11	O-ring	13,4X1,78	2			17228604345
12	Hex nut	M6-8-ZNNIV SI	2			07119905544	$0.64
13	Spacer pin		1			17127848317
