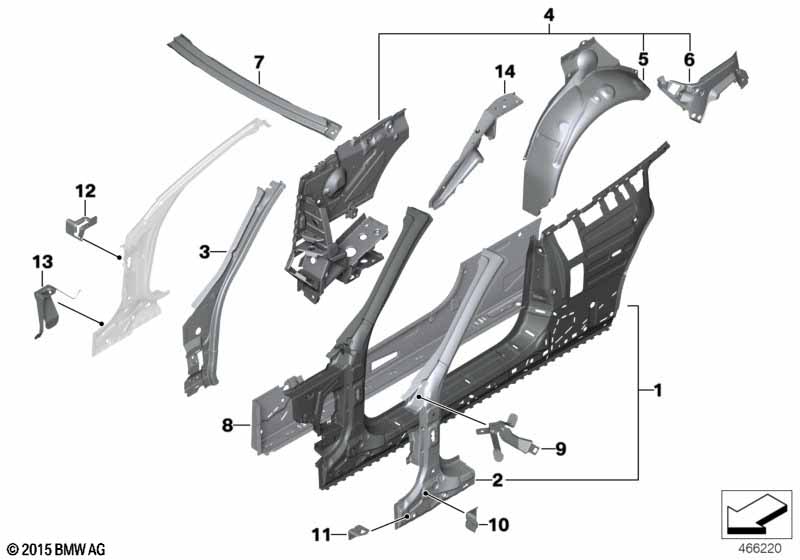

4' F83 M4 M4 Body-side frame
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41007347303 | ||||||
| only in conjunction with | |||||||||
| 01 | Side frame, exterior, right | 1 | 41007347304 | ||||||
| only in conjunction with | |||||||||
| -- | Blind plug | D=15MM | 2 | 07147127540 | $0.26 | ||||
| Required for repair | |||||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | |||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | |||||
| 02 | Left exterior column A | 1 | 41217347315 | ||||||
| only in conjunction with | |||||||||
| 02 | Column A exterior right | 1 | 41217347316 | ||||||
| only in conjunction with | |||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | ||||
| Required for repair | |||||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | |||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | |||||
| 03 | Left interior column A | 1 | 41217347007 | ||||||
| only in conjunction with | |||||||||
| 03 | Right interior column A | 1 | 41217347008 | ||||||
| only in conjunction with | |||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | ||||
| 04 | Left interior side frame | 1 | 41218061427 | ||||||
| 04 | Right interior side frame | 1 | 41218061428 | ||||||
| only in conjunction with | |||||||||
| -- | Threaded welding stud | M6X14 | 2 | 07147186109 | |||||
| 05 | Wheel arch outer rear left | 1 | 41218060229 | ||||||
| 05 | Wheel arch outer rear right | 1 | 41218060230 | ||||||
| only in conjunction with | |||||||||
| -- | Threaded welding stud | M6X14 | 2 | 07147186109 | |||||
| 06 | Striker plate, side panel, rear left | 1 | 41347347107 | ||||||
| 06 | Rear panel side wall, rear right | 1 | 41347347108 | ||||||
| 07 | Upper apron | 1 | 41327347289 | ||||||
| 08 | Side member, inner left | 1 | 41217346967 | ||||||
| 08 | Side member, inner right | 1 | 41217346968 | ||||||
| 09 | Bracket, side panel, top left | 1 | 41217347365 | ||||||
| 09 | Bracket, side panel, top right | 1 | 41217347366 | ||||||
| 10 | Bracket, side panel, bottom | 2 | 41217284401 | ||||||
| 11 | Bracket, side panel column A | 2 | 01/2025 | 41117174365 | $1.85 | ||||
| Required for repair | |||||||||
| -- | Blind rivet N3 | 4 | 01/2025 | 83190301421 | $0.31 | ||||
| -- | Body adhesive K5 | 50 ML | 2 | 01/2025 | 83192158654 | ||||
| -- | Cleaner R1 | 100ML | 2 | 01/2025 | 83192211217 | EBA 2446652 | |||
| 12 | Bracket, wash water container top | 1 | 41007347364 | ||||||
| 13 | Holder, washer fluid reservoir, lower | 1 | 41007347367 | ||||||
| 14 | Reinforcement left | 1 | 41007347177 | ||||||
| only in conjunction with | |||||||||
| 14 | Reinforcement right | 1 | 41007347178 | ||||||
| only in conjunction with | |||||||||
| -- | Earth pin | M6X12 | 1 | 41248185432 | |||||
Notes
- EBA = Einbauanleitung (Installation instructions)
