4' F83 M4 M4 Reinforcement for body, rear

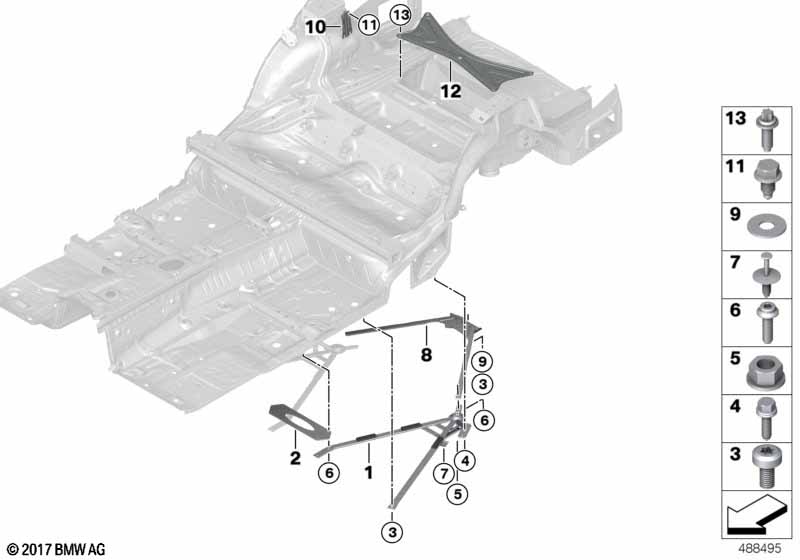

Reinforcement for body, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Dual link, link M 1 33322284657 NoS
01 Dual link, right M 1 33322284658 NoS
02 Connecting support 1 33312284647 NoS
03 Torx bolt ISA M12X35-10.9 3 33306861221
04 Hex screw with collar M10X33-10.9 4 33326768354 $1.14
05 Hex nut AM10-10-ZNS3 2 07129904865 $1.00
06 Fillister-head screw M8X28 10 17227833189 $3.25
07 Expanding rivet 2 51118174185 $0.30
08 V-brace M 1 33322284659 NoS
09 Washer 1 07119904613
10 Rod 2 41008062433
Required for repair
-- Hex bolt with washer M8X25 8 07147075050 $1.25
11 Hex bolt M8X14-8.8-ZNS3 8 07119906977
12 Brace, luggage compartment floor 1 51717276204
13 ASA-Bolt M8X25 4 07147316809
Notes
  • NoS = No Stock (Part, central, not in stock.)
