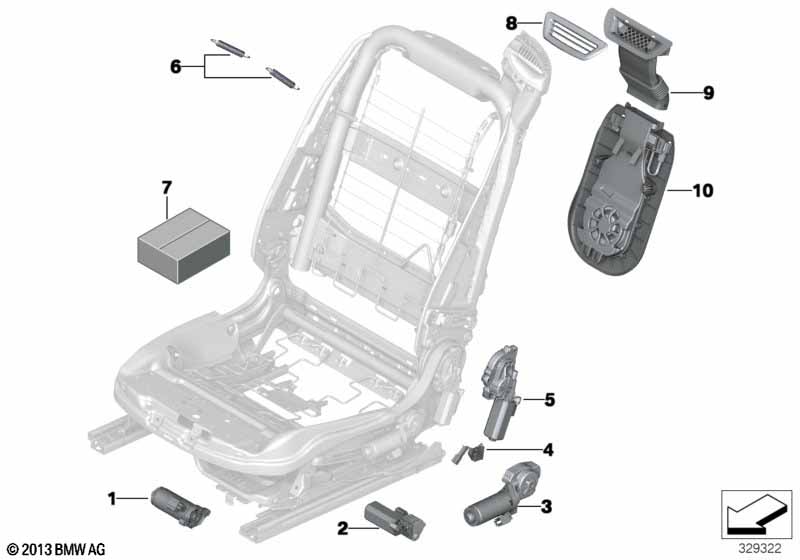

4' F83 M4 M4 Seat, front, electrical and motors
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive, longitudinal seat adjustment left | 1 | 52107309647 | ||||||
| 01 | Drive, longitudinal seat adjustment rght | 1 | 52107321956 | ||||||
| 02 | Drive, seat angle adjustment left | 1 | 52107309659 | ||||||
| 02 | Drive, seat angle adjustment right | 1 | 52107309660 | ||||||
| 03 | Drive, seat height adjustment left | 1 | 52107309657 | ||||||
| 03 | Drive, seat height adjustment right | 1 | 52107309658 | ||||||
| 04 | Micro switch left | 1 | 52107025193 | $59.69 | |||||
| 04 | Micro switch right | 1 | 52107025194 | $59.69 | |||||
| 05 | Drive unit, backrest angle adjust., left | 1 | 52107309653 | ||||||
| 05 | Drive unit, backrest angle adjst., right | 1 | 52107309654 | ||||||
| 06 | Set, springs, backrest width adjustment | 2 | 52107242079 | ||||||
| 07 | set of fittings for seat drive | 2 | 52107309648 | ||||||
| 08 | Cover | SCHWARZ | 2 | 52107340268 | |||||
| For vehicles with Neck warmer |
S4NHA=Yes |
||||||||
| 09 | Air channel | 2 | 52107339987 | ||||||
| 10 | Fan for neck warmer | 2 | 52107337696 | ||||||
