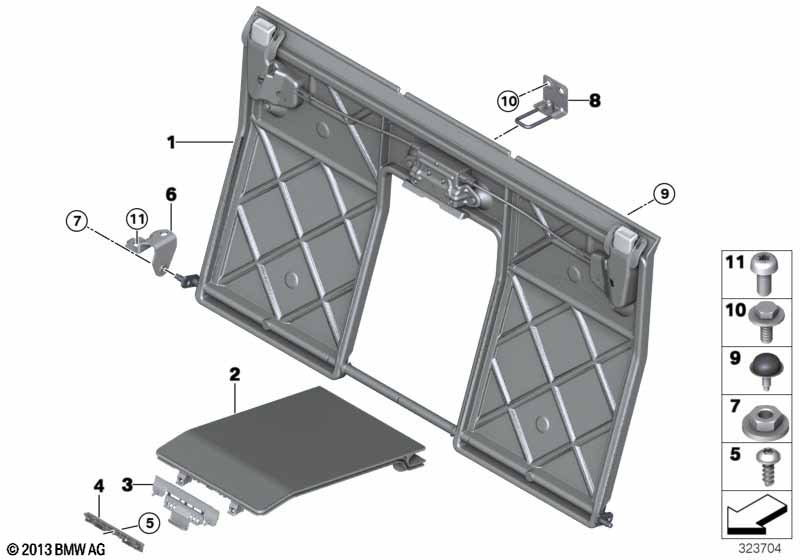

4' F83 M4 M4 Seat, rear, seat frame

Seat, rear, seat frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 backrest frame el. fa SCHWARZ 1 52209113318
For vehicles with
National version Australia

L810A=Yes
01 backrest frame el. fa SCHWARZ 1 52209129122
02 Supporting part, filler SCHWARZ 1 52209113321 $38.59
03 Unlocking unit 1 52209113035 $23.38
04 Cover for armrest release 1 52209113036 $13.30
05 Fillister head screw ST4X10 ZNS3 1 52209113040 $1.73
06 Bearing exterior left 1 52209113037 $5.86
06 Bearing exterior right 1 52209113038 $5.86
07 Nut M8 2 52209113039 $1.48
08 Catch bracket 1 52207328110
09 Stop buffer 2 52207326087
10 Hex bolt with washer M6X16-U2-ZNS3 2 07119902913
11 Fillister head screw M10X22 2 07149148299
