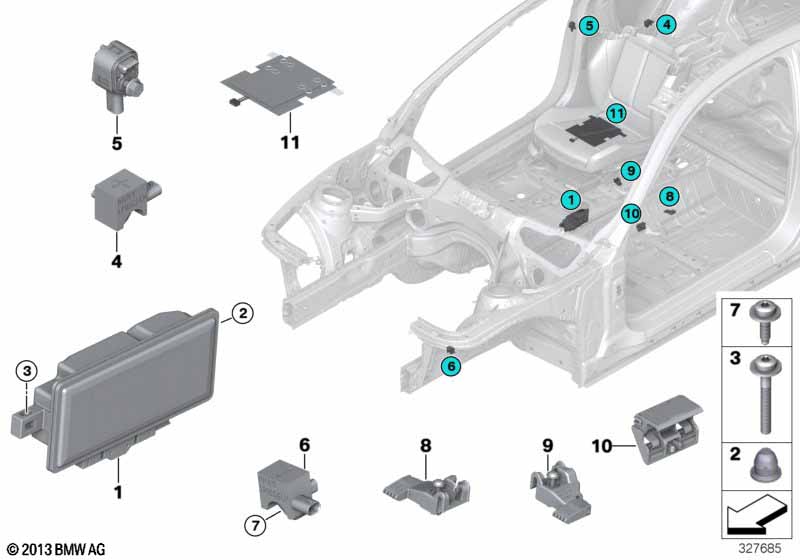

4' F83 M4 M4 Electric parts airbag
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Sensor mats for seat occupation detection are contained in seat supports of HG52. |
||||||||
| 01 | Control unit airbag | 1 | 07/2015 | 65779350004 | ENDED | ||||
| 01 | Control unit airbag | 1 | 11/2015 | 65779385027 | ENDED | ||||
| 01 | Control unit airbag | 1 | 11/2016 | 65776807635 | ENDED | ||||
| 01 | Control unit airbag | 1 | 11/2018 | 65776837360 | |||||
| 01 | Control unit airbag | 1 | 65779461917 | ||||||
| 02 | Snap-lock coupling | 7MM | 2 | 46637691016 | $1.54 | ||||
| 03 | Sheet metal screw | ST4,2X32 | 1 | 07119907848 | |||||
| 04 | Sensor, B-pillar | 2 | 65779234989 | ||||||
| 05 | Sensor door | 2 | 65779217711 | +core | |||||
| 06 | Sensor, front | 2 | 65779196042 | ||||||
| 07 | Countersunk screw | M6X20 | 2 | 07119908042 | |||||
| 08 | Sensor, driver's seat | 1 | 65779243135 | +core | |||||
| 09 | Sensor, passenger's seat | 1 | 61319243474 | +core | |||||
| 10 | Magnet for for seat position | 1 | 65779243136 | +core | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
