3' F34 GT 328i Retrofit kit, trailer coupling swiveling

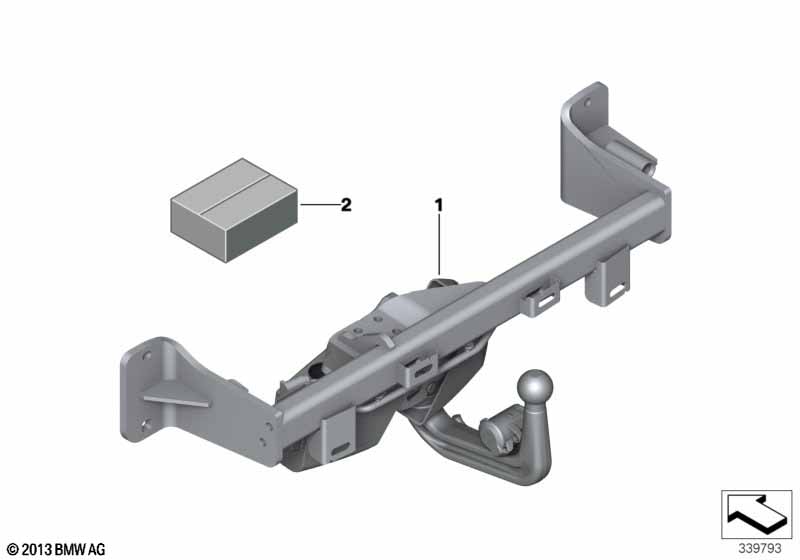

Retrofit kit, trailer coupling swiveling
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i An exchange of the "Lüfterzarge mit
Lüfter" and "Kühlmittelkühler /
ausgelagerten Kühlmittelkühler"
may be necessary.
If on the picture panel in the main
group 17
there is a "Lüfterzarge mit Lüfter" and
"Kühlmittelkühler / ausgelagerten
Kühlmittelkühler" designated to the
OE trailer tow hitch,
then this part number
has to be ordered and installed as well.
Note:
The installation instructions are not
in the
retrofit kit.
The latest installation instructions
from
the Aftersales Assistance Portal
(ASAP) must be printed and given to the
customer.
For vehicles with
National version Australia






















L810A=No
Only together with rear muffler heat
shield
01 Trailer coupling, electric swiveling 1 03/2014 71606864436 ENDED, EBA 2295843
only in conjunction with
-- Control unit AHK 1 03/2014 71606856980 +core
01 Trailer coupling, electric swiveling 1 04/2015 71606870641 ENDED, EBA 2358044
01 Trailer coupling, electric swiveling 1 71606883984
only in conjunction with
-- Intermediate plate assy 1 71606878215
-- Washer-gasket 1 51127240917
02 Retrofit kit, electr. additional parts 1 03/2014 71602296995 +core, EBA 2295843
02 Retrofit kit, electr. additional parts 1 03/2014 71602289549 EBA 2358044
only in conjunction with
-- Control unit for trailer hitch AAG-01 1 03/2014 71606884357 ENDED
-- Bracket for module 1 03/2014 66336854515
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
