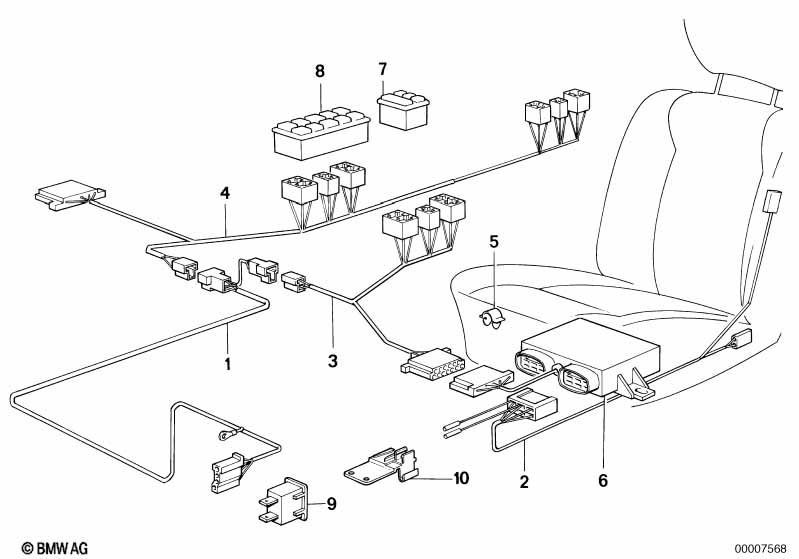

5' E28 520i Wiring adjustable front seat

Wiring adjustable front seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
National version japan
ONLY APPLIES TO ADJUSTIBLE FRONT SEAT

L807A=Yes
01 Wiring drivers side 1 10/1984 61121377184 $96.81 ENDED
For vehicles with
National version japan
and
Memory

L807A=Yes

=Yes
01 Wiring drivers side 1 10/1984 61121377183 ENDED
For vehicles with
National version japan
ONLY APPLIES TO ADJUSTIBLE FRONT SEAT

L807A=Yes
02 Wiring adjustible backrest and headrest 1 09/1982 61121369917 $28.24 ENDED
For vehicles with
National version japan
and
Memory

L807A=Yes

=Yes
02 Wiring adjustible backrest and headrest 1 09/1983 61121373108 $87.61 ENDED
For vehicles with
National version japan
ONLY APPLIES TO ADJUSTIBLE FRONT SEAT

L807A=Yes
03 Wiring co-drivers side 1 10/1984 61121377185 $60.82 ENDED
For vehicles with
National version japan

L807A=Yes
05 Cable holder D=16,8MM 2 09/1982 12521276147 $0.58
06 Control unit 1 09/1982 61311369678 $470.60 ENDED
For vehicles with
National version japan
and
Memory

L807A=Yes

=Yes
06 Control unit 1 09/1983 61311371916 $1158.23 ENDED
07 Switch 1 09/1983 61311370097 $235.48 ENDED
For vehicles with
National version japan
ONLY APPLIES TO ADJUSTIBLE FRONT SEAT
ONLY APPLIES TO MEMORY

L807A=Yes
08 Switch combination adjustable seat 2 09/1982 61311375153 $160.82
Notes
  • ENDED = the part has been discontinued (no longer available).
