5' E28 525e Oil pan/oil level indicator

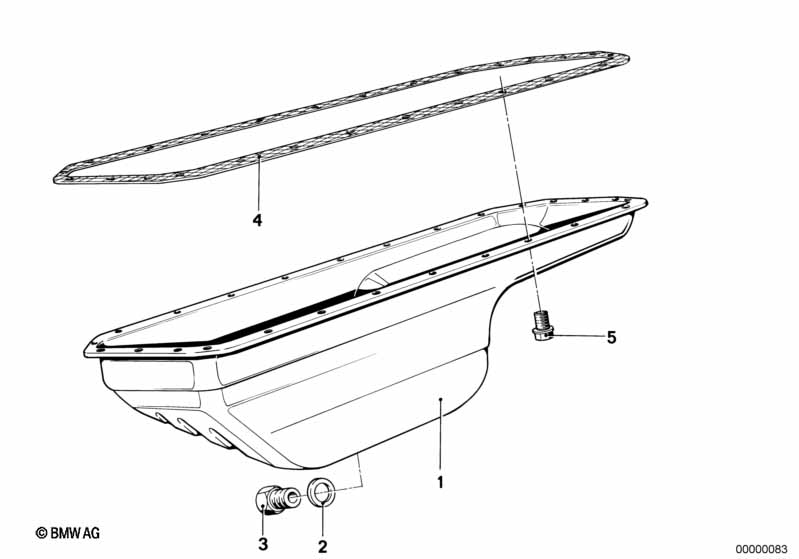

Oil pan/oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 09/1984 11131278927 $166.13
01 Oil Pan 1 09/1984 11131278927 $166.13
01 Oil Pan 1 09/1984 02/1985 11131278927 $166.13
01 Oil Pan 1 09/1984 02/1985 11131278927 $166.13
01 Oil Pan 1 09/1984 02/1985 11131286401 $193.97
only in conjunction with
01 Oil Pan 1 09/1984 02/1985 11131286401 $193.97
only in conjunction with
-- Gasket ring 40X4 1 09/1984 02/1985 12611277129 $2.09
-- Gasket ring 40X4 1 09/1984 02/1985 12611277129 $2.09
-- Levelling switch 1 09/1984 02/1985 12611279667 $123.97
-- Levelling switch 1 09/1984 02/1985 12611279667 $123.97
-- Washer 1 09/1984 02/1985 11411267200 $0.82
-- Washer 1 09/1984 02/1985 11411267200 $0.82
-- Hex nut M6-8-ZNNIV SI 3 09/1984 02/1985 07119905543 $0.38
-- Hex nut M6-8-ZNNIV SI 3 09/1984 02/1985 07119905543 $0.38
-- Wave washer B6 3 09/1984 02/1985 07119932099 $0.38
-- Wave washer B6 3 09/1984 02/1985 07119932099 $0.38
01 Oil Pan 1 02/1985 11131278927 $166.13
For vehicles with
Official vehicles

=Yes
01 Oil Pan 1 11131286401 $193.97
02 Gasket ring A12X17-CU 1 07119963151 $0.57
03 Screw plug AM12X1,5 1 07119919225 $0.85
04 Gasket Asbestos Free 1 11131730234 $18.37
05 Hex bolt with washer M6X16-Z1 X 06/1988 07119915039 $0.27 ENDED
05 Hex bolt with washer M6X16-U1-ZNS3 X 07119903844 $0.38
05 Hex bolt with washer M6X16-U1-8.8 X 07119904524 $0.25
Notes
  • ENDED = the part has been discontinued (no longer available).
