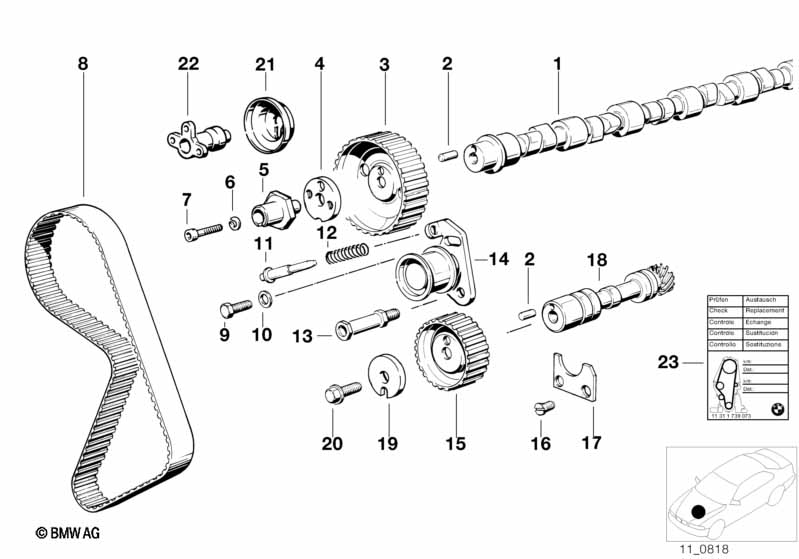

5' E28 525e Timing+valve train-tooth belt/camshaft

Timing+valve train-tooth belt/camshaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Camshaft Camshaft 1 09/1985 11311276441 $536.94
01 Camshaft Camshaft 1 09/1985 11311276441 $536.94
01 Camshaft Camshaft 1 09/1985 11311708884 $445.28
01 Camshaft Camshaft 1 09/1987 11311276441 $536.94
01 Camshaft Camshaft 1 09/1987 11311720670 $536.94
02 Dowel pin 8 M6X14 2 07119942079 $0.30
03 Gear wheel,tooth belt SINTER 1 11311714988 $54.67
03 Gear wheel,tooth belt 1 11311284273 $17.51 ENDED
03 Gear wheel,tooth belt SINTER 1 11311714988 $54.67
only in conjunction with
-- Adapter 1 11311713064 $20.65
-- Cover 1 11311713475 $2.82
-- Torx bolt M10X35 1 11311715412 $5.80
-- Fillister-head screw M10X35 12.9 1 11311716274 $5.54 ENDED
For vehicles with
National version Austria

V013A=Yes
03 Gear wheel,tooth belt 1 09/1985 11311278828 ENDED
03 Gear wheel,tooth belt 1 09/1985 11311284273 $17.51 ENDED
04 Washer M. 4 LÖCHER 1 09/1985 11311264692 $6.90
04 Washer M. 4 LÖCHER 1 09/1985 11311264692 $6.90
04 Washer O. LOCH 1 09/1985 11311717180 $1.10
04 Washer 1 09/1985 11311730610 $4.62
05 Adapter 1 03/1983 11311272913 $24.44 ENDED
05 Adapter 1 03/1983 11311272913 $24.44 ENDED
07 Lock bolt M10X35 1 12/1986 11311714798 $1.95
07 Fillister-head screw M10X35 12.9 1 12/1986 11311716274 $5.54 ENDED
07 Torx bolt M10X35 1 12/1986 11311715412 $5.80
08 Tooth belt semicircular profile Z=127 1 11311713361 $56.88 ENDED
08 Tooth belt semicircular profile Z=127 1 11311711081
09 Hex bolt M8X20-ZNS 1 07119901120 $0.60 ENDED
09 Hex bolt M8X20-ZNNIV SI 1 07119903039
10 Washer A8,4 1 12/1987 07119900052 $0.11 ENDED
10 Washer 8,4X16X1,6-ZNNV 1 07119907030
11 Pin 1 11311280960 $4.32
12 Compression spring 1 11311267746 $1.09
13 Screw 1 11311272433 $5.13
14 Adjusting pulley 1 11311711153 $103.08 ENDED
14 Adjusting pulley 1 11311711154
15 Gear wheel,tooth belt SINTER 1 11311717398 $32.80
16 Countersunk head screw M6X12 2 52101817063 $0.92
17 Guide 1 11351280551 $7.88
18 Set intermediate shaft "B" 1 11/1985 11359058742 ENDED
18 Set intermediate shaft "B" 1 11/1985 11359058742 ENDED
18 Intermediate shaft B 1 11/1985 11351716095 $145.96
only in conjunction with
18 Intermediate shaft B 1 11/1985 11351716095 $145.96
only in conjunction with
-- Gear wheel "B" 1 11/1985 11411713218 $50.63
-- Gear wheel "B" 1 11/1985 11411713218 $50.63
-- Washer 1 11/1985 11311714795 $2.12
-- Washer 1 11/1985 11311714795 $2.12
-- Lock bolt M10X35 1 11/1985 11311714798 $1.95
-- Lock bolt M10X35 1 11/1985 11311714798 $1.95
18 Intermediate shaft B 1 11/1985 11351716095 $145.96
19 Washer 1 11311714795 $2.12
20 Lock bolt M10X28 1 11311266796 $1.29
20 Lock bolt M10X35 1 11311714798 $1.95
21 Cover 1 03/1983 12/1986 11311287699 $2.18
21 Cover 1 12/1986 11311713475 $2.82
22 Adapter 1 03/1983 12/1986 11311287625 $26.56
22 Adapter 1 12/1986 11311713064 $20.65
23 Label, Tooth Belt Change 1 11311739073 $0.45
Notes
  • ENDED = the part has been discontinued (no longer available).
