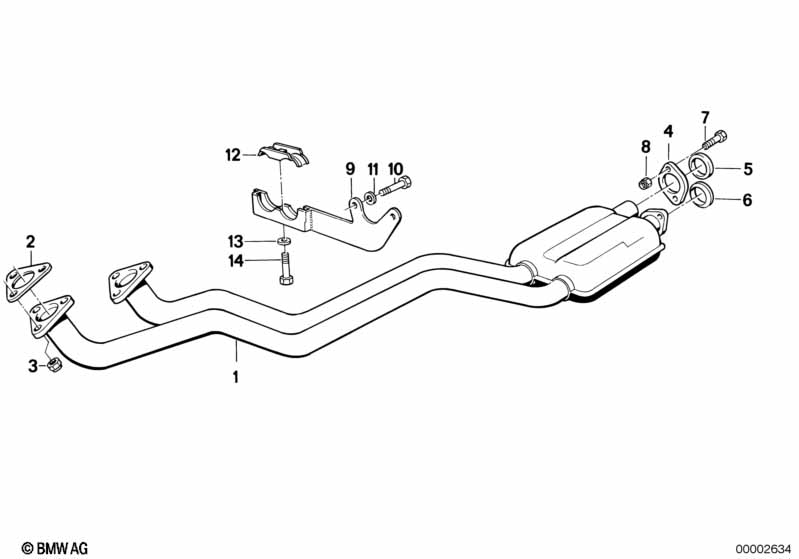

5' E28 525e Exhaust assy without catalyst

Exhaust assy without catalyst
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i CATALYZER PREPARATION
CONVENTIONAL EXHAUST TECHNIQUE
01 Exhaust pipe catalyst preparation 1 12/1986 18111712500 ENDED
02 Gasket Asbestos Free 2 12/1986 11761711717 $18.37
03 Hex nut M10 X 12/1986 18301737774 $1.65
04 Flange 1 12/1986 18111712064 $12.64
05 Gasket ring asbesto-free 45MM 1 12/1986 18111723541 $8.37 ENDED
05 Gasket ring asbesto-free 45MM 1 12/1986 18111723533
06 Gasket ring 42MM 1 12/1986 18111245960 $8.37 ENDED
06 Conical ring 42MM 1 12/1986 18111245489 $5.47
07 Hex bolt M8X55-8.8 4 12/1986 07119902957 $5.27
08 Hex nut wiht flange M8 4 12/1986 12/1987 11621711954 $0.60 ENDED
08 Hex nut wiht flange M8 4 12/1986 18307620549
09 Exhaust support 1 12/1986 18211177018 $8.26
10 Hex bolt M8X22-8.8-ZNS3 2 12/1986 07119904040
11 Washer A8,4 2 12/1986 33311108205 $0.16
12 Pipe clamp 1 12/1986 18211176919 $10.64
13 Washer 8,4X16X1,6-ZNNV 1 12/1986 07119907030
14 Hex bolt M8X55-8.8 1 12/1986 07119902957 $5.27
Notes
  • ENDED = the part has been discontinued (no longer available).
