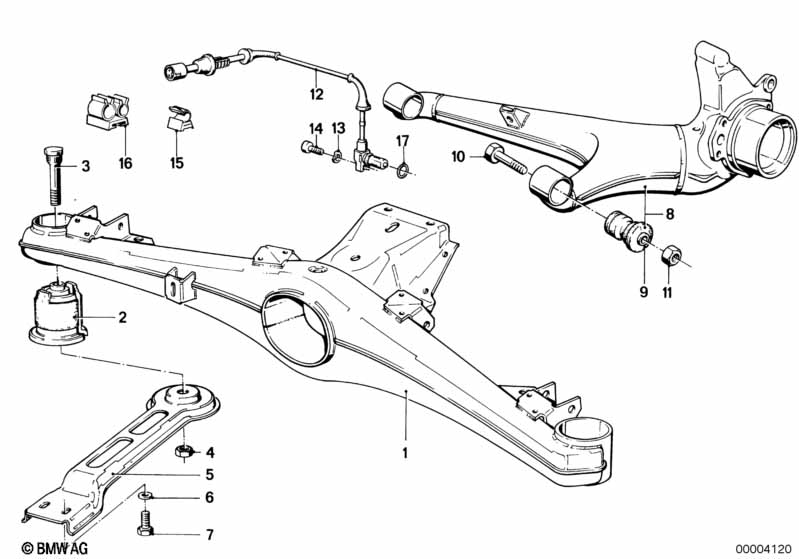

5' E28 525e Rear axle support/wheel suspension

Rear axle support/wheel suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear axle carrier 1 04/1986 33311126009
02 Rubber Mounting 2 04/1986 33311130488 $49.10 ENDED
02 Rubber Mounting 2 04/1986 33311130487
03 Knurled bolt M14X1,5X30 10.9 2 04/1986 33323628167 $7.58
04 Self-locking hex nut M14X1,5 2 04/1986 07129922745 $1.04
05 Push rod 2 04/1986 33311123982 $11.39
06 Washer A8,4X25 4 04/1986 23711246623 $0.20 ENDED
07 Hex bolt M8X20-ZNNIV SI 4 04/1986 07119903039
08 Trailing arm, left 1 04/1986 33321127402 $389.48
08 Trailing arm, right 1 04/1986 33321127403 $389.48
ONLY APPLIES TO DISK BRAKE
08 Trailing arm, left 1 04/1986 33321124234
08 Trailing arm, right 1 04/1986 33321124235 $534.85
09 Set rubber mounting eccentric D=30MM 2 04/1986 33329058822 $33.38
09 Set rubber mounting D=30MM 2 04/1986 33329061945 $26.77
10 Hex bolt M12X1.5X90 4 04/1986 07119914667 $1.78
11 Self-locking hex nut M12X1,5-10-PHR 4 04/1986 07129900047 $0.62
12 Pulse generator 2 04/1986 34521154046 $161.11 ENDED
13 Wave washer B6 2 04/1986 07119932099 $0.38
14 Fillister-head screw M6X12 2 04/1986 07119919913 $0.20 ENDED
14 Fillister-head screw M6X12-ZNNIV SI 2 04/1986 07119905816 ENDED
14 ISA screw M6X12-8.8-ZNNIV 2 04/1986 07129905867
15 Cable holder 4 04/1986 61131369469 $1.13 ENDED
16 Cable holder 1 04/1986 34521154059 $1.02
17 O-ring 12,42X1,78 FKM 2 04/1986 11007776604
Notes
  • ENDED = the part has been discontinued (no longer available).
