5' E28 525e Levelling device/tubing rear

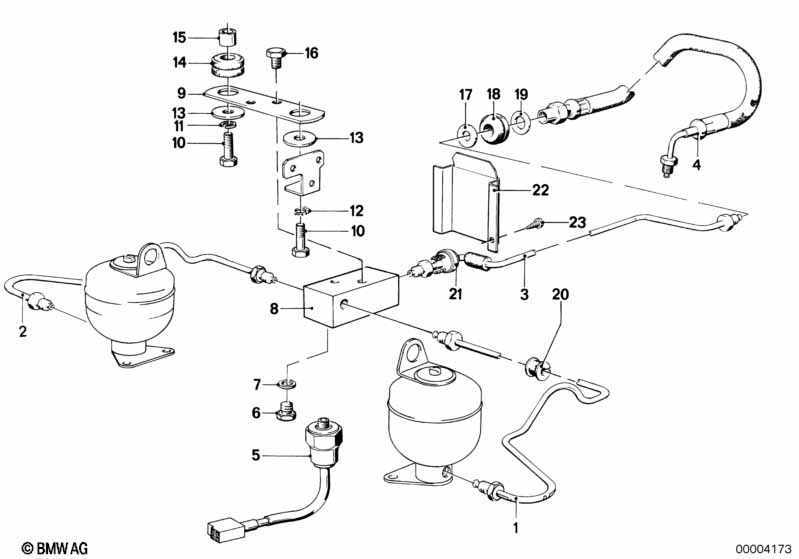

Levelling device/tubing rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipe M10/M10-668MM 1 08/2000 34321153691 $6.63 ENDED
01 Pipe M10/M10-668MM 1 34326755587 $8.20 ENDED
01 Pipe M10/M10 1 34326772563 $53.48
02 Pipe M10/M10-963MM 1 08/2000 34321153706 $8.70 ENDED
02 Pipe M10/M10-963MM 1 34326755601 $10.03
03 Pipe M10/M10-668MM 1 09/1984 34321153691 $6.63 ENDED
03 Pipe M10/M10-668MM 1 09/1984 34321153691 $6.63 ENDED
03 Pipe M10/M10-668MM 1 09/1984 34326755587 $8.20 ENDED
03 Pipe M10/M10-668MM 1 09/1984 34326755587 $8.20 ENDED
03 Pipe M10/M10 1 09/1984 34326772563 $53.48
03 Pipe M10/M10 1 09/1984 34326772563 $53.48
03 Pipe M10/M10-780MM 1 09/1984 34326755592 $8.65
04 Hose 1 37131121008 ENDED
05 Pressure switch 30BAR 1 04/1985 61311368271 $176.36
05 Pressure switch 30BAR 1 04/1985 61311368271 $176.36
05 Pressure switch 30BAR 1 61311368271 $176.36
05 Pressure switch 140BAR 1 04/1985 37141155652 $197.53 ENDED
06 Screw plug AM10X1 1 07119919217 ENDED
07 Gasket ring A10X13,5-CU 1 07119963072 $0.11
08 T-Connector 1 37131119861 $110.21
09 Holder 1 37131119862 $3.35 ENDED
10 Hex bolt M6X25 2 07119913589 $0.62
11 Spring washer B6 2 07119933082 $0.09
12 Tooth washer A6,4 1 07119936133 $0.38
13 Washer 6,4 2 12/1987 37211119646 $0.33 ENDED
13 Washer 6,4X25X1,5 2 07146977329 $0.64
14 Rubber grommet 2 37211119643 $1.45
15 Spacer bush 12MM 1 37211119062 $3.37
16 Hex bolt M6X8 2 07119913420 $0.13
17 Washer 10X25X1,5-ZNS3 1 37131114028 $0.80
18 Rubber grommet 1 12/1987 37131113374 $1.58 ENDED
18 Rubber grommet 1 34306865954
19 Washer 14X25X2-ZNS3 1 34301163613 $0.83
22 Covering plate 1 37131121089 $2.68 ENDED
23 Fillister head self-tapping screw ST3,5X9,5 4 12/1987 07119906717 $0.25 ENDED
23 Sheet metal screw 3,5X9,5 4 07119904455 $2.45
Notes
  • ENDED = the part has been discontinued (no longer available).
