5' E28 525e Outside mirror

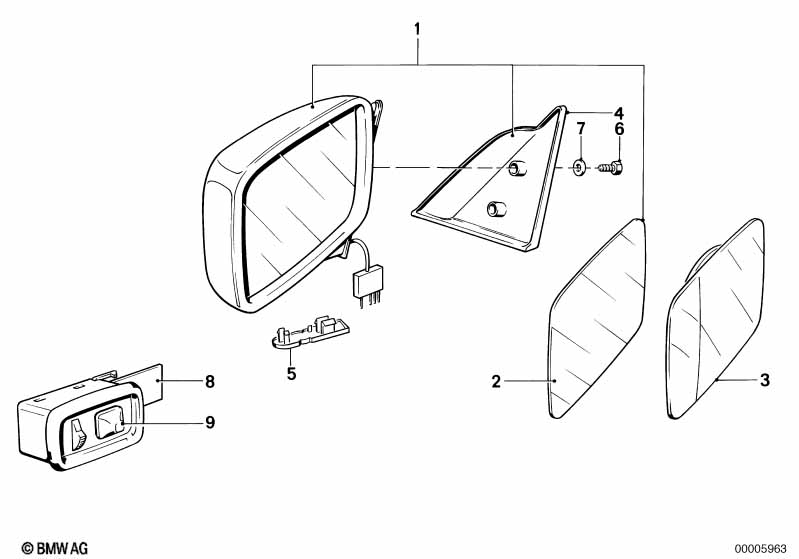

Outside mirror
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Outside mirror, manual, left 1 51161905511 ENDED
01 Outside mirror, manual, right 1 51161905514 $90.95
01 Electr.exterior mirror left 1 51161874627 $183.46 ENDED
ONLY IN CONJUNCTION WITH MIRROR GLAS
01 Electr.exterior mirror right 1 51161874630 $173.70 ENDED
ONLY IN CONJUNCTION WITH MIRROR GLAS
01 Electr.exterior heatable mirror left 1 51161885081 $217.13 ENDED
ONLY IN CONJUNCTION WITH MIRROR GLAS
01 Electr.exterior heatable mirror right 1 51161885084 $233.39 ENDED
ONLY IN CONJUNCTION WITH MIRROR GLAS
01 Electr.exterior heatable mirror left 1 51168222889 $293.69 ENDED
ONLY IN CONJUNCTION WITH MIRROR GLAS
01 Electr.exterior heatable mirror right 1 51168222892 $283.16 ENDED, +core
ONLY IN CONJUNCTION WITH MIRROR GLAS
ONLY APPLIES TO CO-DRIVERS SIDE
02 Mirror glass plugged-in KONVEX 1 51161901172 $29.30
02 Mirror glas heated,plugged-in 1 51161901177 $85.54
ONLY APPLIES TO DRIVER'S SIDE
02 Mirror glass plugged-in 1 51161901170 $33.90
02 Mirror glas heated,plugged-in 1 51161901176 $67.35
For vehicles with
National version Australia
ONLY APPLIES TO CO-DRIVERS SIDE

L810A=Yes
02 Mirror glass plugged-in 1 51161901170 $33.90
For vehicles with
Official vehicles

=Yes
02 Mirror glass plugged-in KONVEX 1 51161901172 $29.30
ONLY APPLIES TO CO-DRIVERS SIDE
02 Adhered mirror glass 1 51161909098 $45.73
ONLY APPLIES TO CO-DRIVERS SIDE
02 Adhered mirror glass 1 51161909097 $27.06
ONLY APPLIES TO DRIVER'S SIDE
ONLY APPLIES TO DRIVER'S SIDE
03 Plugged-in wide-angle mirror glass 1 51161926845 $49.21 EBA 9781194
03 Wide-angle mirror glass heata.plugged-in 1 51161926853 EBA 9781194
04 Seal seft 1 51161874739 $5.27
04 Seal right 1 51161874740 $5.27 ENDED
05 Cover LINKS 1 51161937441 $3.58 ENDED
05 Cover RECHTS 1 51161937442 $3.58 ENDED
06 Hex bolt with washer M5X14 2 09/1998 07119915113 $0.24 ENDED
06 Hex bolt with washer M5X14 2 07119902007 $0.29 ENDED
06 Hex bolt M5X14-8.8-ZNNIV 2 07119904269 $0.36
06 Hex bolt M5X12-8.8 ZN 2 07119913231 $1.42
06 Hex bolt with washer M5X12-Z2 2 07119915005 ENDED
06 Hex bolt 2 16121114532 $0.28 ENDED
07 Washer 5,3 2 07119936416 $0.40 ENDED
07 Washer 5,3-140 HV-ZNS 2 07119936439 $0.40
08 Mirror switch with change-over switch SCHWARZ 1 61311363459 $58.90
09 Knob, switch exterior mirror 1 61311367537 $3.24
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
