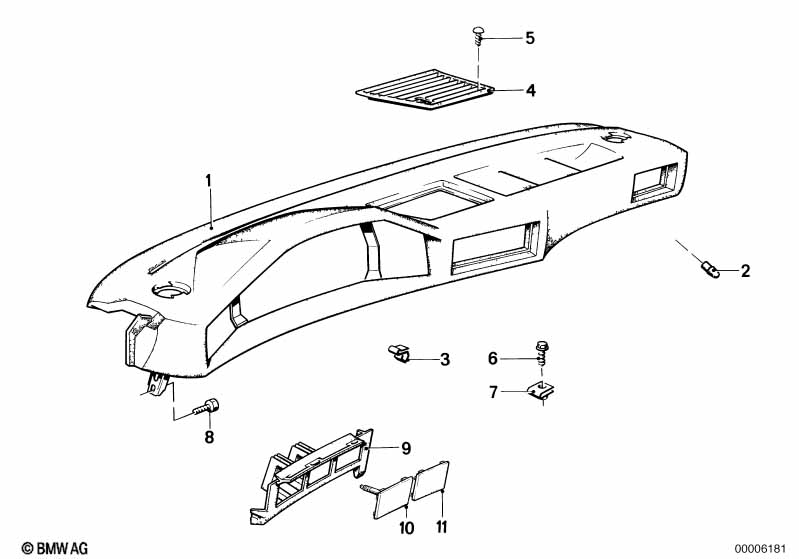

5' E28 525e Trim panel dashboard

Trim panel dashboard
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trim panel dashboard ANTHRAZIT 1 51451872376 $1288.26 ENDED
01 Trim panel dashboard NUTRIA 1 09/1984 51451929189 $1288.26 ENDED
01 Trim panel dashboard PINIENGRUEN 1 09/1984 51451929190 $694.71 ENDED
03 Clamp 4 51451852827 $0.97
04 Cover SCHWARZ 1 51451874491 $14.89 ENDED
04 Cover NUTRIA 1 09/1984 51451929911 ENDED
04 Cover PINIENGRUEN 1 09/1984 51451929912 ENDED
For vehicles with
Air conditioning

=Yes
04 Cover SCHWARZ 1 51451943680 $14.89 ENDED
04 Cover NUTRIA 1 09/1984 51451943681 $10.94 ENDED
04 Cover PINIENGRUEN 1 09/1984 51451943682 $10.94 ENDED
05 Fillister head self-tapping screw ST2,9X16 2 07119907963 $0.07
06 Hex head screw ST4,8X16-C-Z1 1 07119916945 $0.18
07 Body nut ST4,8-1 1 12/1987 07129925735 $0.18 ENDED
07 Set body nut 25 ST4,8-1 1 12/1987 07509063124 ENDED
07 Body nut ST4,8-1-ZNS 1 12/1987 07129901647 $0.11 ENDED
07 Body nut ST 4,8 1 12/1987 07129904222 $0.11 ENDED
07 Plug-in nut M5 1 46637651465 $1.29
08 Hex bolt M6X12 4 07119913442 $0.25 ENDED
08 Hex bolt M6X12-8.8-ZNNIV 4 07119905524 $0.27
09 Switch support 1 51451879533 $14.88
10 Cover 1 61311362305 $32.41 ENDED
11 Plug 1 63121367925 $53.79
Notes
  • ENDED = the part has been discontinued (no longer available).
