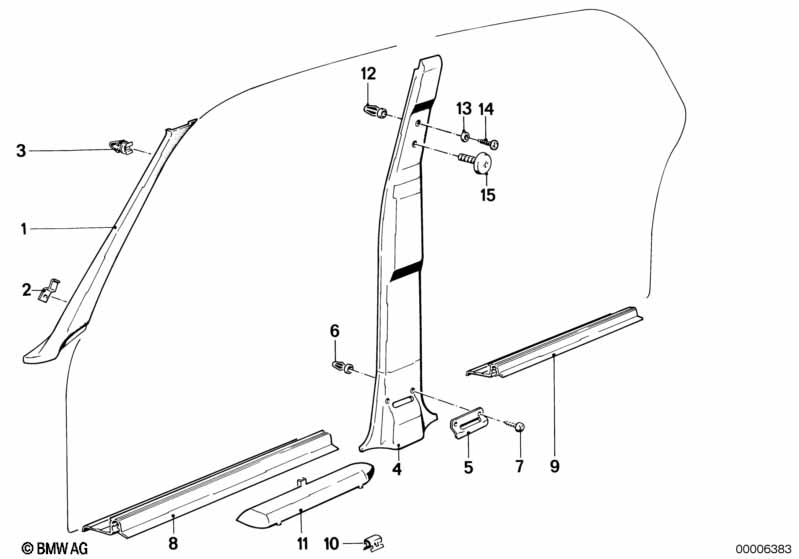

5' E28 525e Interior trim lateral

Interior trim lateral
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Covering apron left ANTHRAZIT 1 09/1984 51431874777 ENDED
01 Covering apron left ANTHRAZIT 1 09/1984 51431874777 ENDED
01 Covering apron right ANTHRAZIT 1 09/1984 51431874778
01 Covering apron right ANTHRAZIT 1 09/1984 51431874778
ONLY APPLIES TO
FRONT HEADLINING COVER
01 Covering apron left ANTHRAZIT 1 09/1984 51431872851 $20.21 ENDED
01 Covering apron right ANTHRAZIT 1 09/1984 51431872852 $20.21 ENDED
01 Covering apron right NUTRIA 1 09/1984 51431929164 $19.42 ENDED
01 Covering apron left PINIENGRUEN 1 09/1984 51431929165 ENDED
01 Covering apron right PINIENGRUEN 1 09/1984 51431929166 $34.60 ENDED
02 Holder 2 51431873469 $1.02
03 Clamp 2 51431881429 $0.85
04 Covering column-center left ANTHRAZIT 1 51431874097 $59.62 ENDED
04 Covering column-center right ANTHRAZIT 1 51431874098 $59.62 ENDED
04 Covering column-center left NUTRIA 1 09/1984 51431929129 $59.62 ENDED
04 Covering column-center right NUTRIA 1 09/1984 51431929130 $59.62 ENDED
04 Covering column-center left PINIENGRUEN 1 09/1984 51431929131 $59.62 ENDED
04 Covering column-center right PINIENGRUEN 1 09/1984 51431929132 $52.45 ENDED
For vehicles with
Official vehicles

=Yes
04 Covering column-center left ANTHRAZIT 1 51431959053 ENDED
04 Covering column-center right ANTHRAZIT 1 09/1984 51431959054 ENDED
04 Covering column-center left NUTRIA 1 09/1984 51431959055 ENDED
04 Covering column-center right NUTRIA 1 09/1984 51431959056 ENDED
04 Covering column-center left PINIENGRUEN 1 09/1984 51431959057 ENDED
04 Covering column-center right PINIENGRUEN 1 09/1984 51431959058 ENDED
05 Cover 2 09/1984 51431873249 $10.61 ENDED
05 Cover 2 09/1984 51431873249 $10.61 ENDED
06 Expanding nut 3,9 4 09/1984 51135680113 $0.28
06 Expanding nut 3,9 4 09/1984 51135680113 $0.28
07 Fillister head self-tapping screw ST4,2X19 4 09/1984 51431874616 $0.39
07 Fillister head self-tapping screw ST4,2X19 4 09/1984 51431874616 $0.39
08 Sill strip front 2 51471913711 $148.64
09 Sill strip rear 2 51471913713 $148.64 ENDED
10 Clamp X 51471866667 $0.18
11 Covering inner left 1 51711880547 $6.49
11 Covering inner right 1 51711880548 $5.27 ENDED
12 Expanding nut 2 51451880570 $0.17 ENDED
12 Expanding nut 2 51451874452 $0.50
13 Hollow washer 2 51187680093 $0.23
14 Recessed oval head sheet-metal screw ST2,9X16 2 07119902423 $0.36
ONLY APPLIES TO
SAFETY BELT FRONT
15 Screw plug 7/16"X18;SCHW. 2 51711913007 $0.68
15 Screw plug 7/16"X18;NUTRIA 2 09/1984 51711926570 ENDED
15 Screw plug 7/16"X18;PINIEN 2 09/1984 51711926571 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
