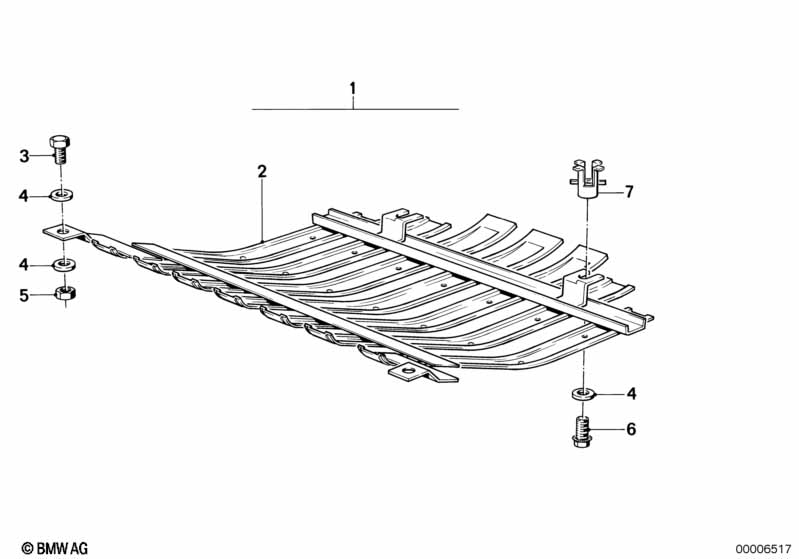

5' E28 525e Front aggregate protective plate

Front aggregate protective plate
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Instal.set aggregate lower protect.front 1 51719057050 ENDED, EBA 9770272
02 Front aggregate protective plate 1 51711917924 $363.88 ENDED
04 Washer 8,4 6 07119936432 $0.16 ENDED
04 Washer 8,4 6 12/1987 07119936441 $0.78 ENDED
04 Washer 8,4X24X2-ZNS3 6 07119904164 $0.40
04 Washer 17 2 09/1982 07119931093 $0.58
05 Self-locking hex nut M8 2 07/1990 07129922428 $0.35 ENDED
05 Self-locking hex nut M8-8-ZNS 2 07129964675 $0.56 ENDED
05 Self-locking hex nut M8-8-ZNS3 2 07129904002 $0.18
06 Hex bolt M8X20 2 71601245892 $0.95
07 Blind rivet nut, flat headed M8 2 51711909942 $3.08
07 Nut CHAMPION M8 2 51719057885 $2.88 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
