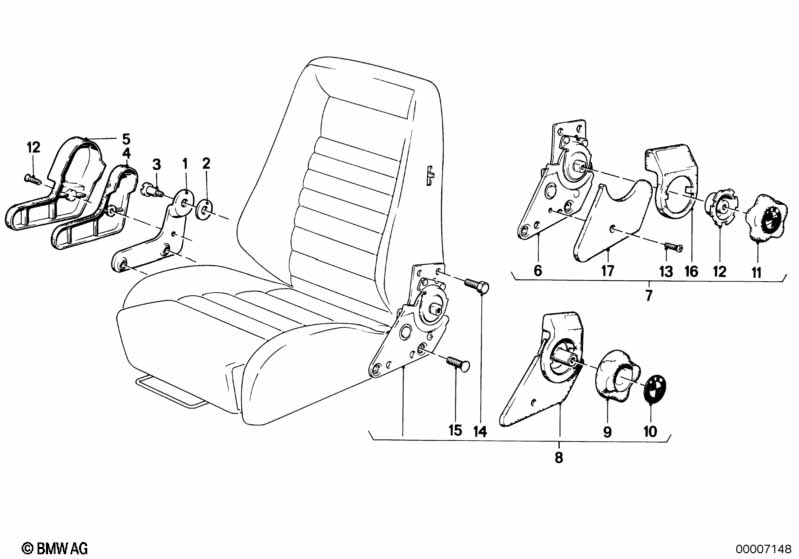

5' E28 525e Recaro sports seat-recl. seat fitting

Recaro sports seat-recl. seat fitting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Recl.seat fitting inner left 1 09/1982 09/1983 52101851341 $22.10 ENDED
01 Recl.seat fitting inner left 1 09/1982 09/1983 52101851341 $22.10 ENDED
01 Recl.seat fitting inner right 1 09/1982 09/1983 52101851342 ENDED
01 Recl.seat fitting inner right 1 09/1982 09/1983 52101851342 ENDED
02 Washer 2 09/1982 09/1983 52101850540 ENDED
02 Washer 2 09/1982 09/1983 52101850540 ENDED
03 Screw 2 09/1982 09/1983 52101850532 ENDED
03 Screw 2 09/1982 09/1983 52101850532 ENDED
04 Cover 1 09/1982 09/1983 52101864945 $12.16 ENDED
04 Cover 1 09/1982 09/1983 52101864945 $12.16 ENDED
04 Cover 1 09/1982 09/1983 52101864946 ENDED
04 Cover 1 09/1982 09/1983 52101864946 ENDED
05 Covering inner left 1 09/1982 09/1983 52101874639 $9.99 ENDED
05 Covering inner left 1 09/1982 09/1983 52101874639 $9.99 ENDED
05 Covering inner right 1 09/1982 09/1983 52101874640 $9.99 ENDED
05 Covering inner right 1 09/1982 09/1983 52101874640 $9.99 ENDED
08 Recl.seat fitting outer left 1 09/1982 09/1983 52101917345 $353.77
08 Recl.seat fitting outer left 1 09/1982 09/1983 52101917345 $353.77
08 Recl.seat fitting outer right 1 09/1982 09/1983 52101917346 $353.77 ENDED
08 Recl.seat fitting outer right 1 09/1982 09/1983 52101917346 $353.77 ENDED
09 Control handle 2 09/1982 09/1983 52101917349 ENDED
09 Control handle 2 09/1982 09/1983 52101917349 ENDED
10 Cover 2 09/1982 09/1983 52101901946 $4.53
10 Cover 2 09/1982 09/1983 52101901946 $4.53
13 Self tapping screw EM5X12 4 09/1982 09/1983 07119918525 ENDED
13 Self tapping screw EM5X12 4 09/1982 09/1983 07119918525 ENDED
14 Hex bolt M10X20-10.9-PHR 4 09/1982 09/1983 07119913830 $0.43
14 Hex bolt M10X20-10.9-PHR 4 09/1982 09/1983 07119913830 $0.43
15 Countersunk head screw 8 09/1982 09/1983 52101851344 $3.41 ENDED
15 Countersunk head screw 8 09/1982 09/1983 52101851344 $3.41 ENDED
16 Covering Upper 1 09/1982 09/1983 52101917347 $25.43 ENDED
16 Covering Upper 1 09/1982 09/1983 52101917347 $25.43 ENDED
16 Covering Upper 1 09/1982 09/1983 52101917348 $25.43 ENDED
16 Covering Upper 1 09/1982 09/1983 52101917348 $25.43 ENDED
17 Covering Lower 1 09/1982 09/1983 52101877033 $9.82 ENDED
17 Covering Lower 1 09/1982 09/1983 52101877033 $9.82 ENDED
17 Covering Lower 1 09/1982 09/1983 52101877034 $25.43
17 Covering Lower 1 09/1982 09/1983 52101877034 $25.43
Notes
  • ENDED = the part has been discontinued (no longer available).
