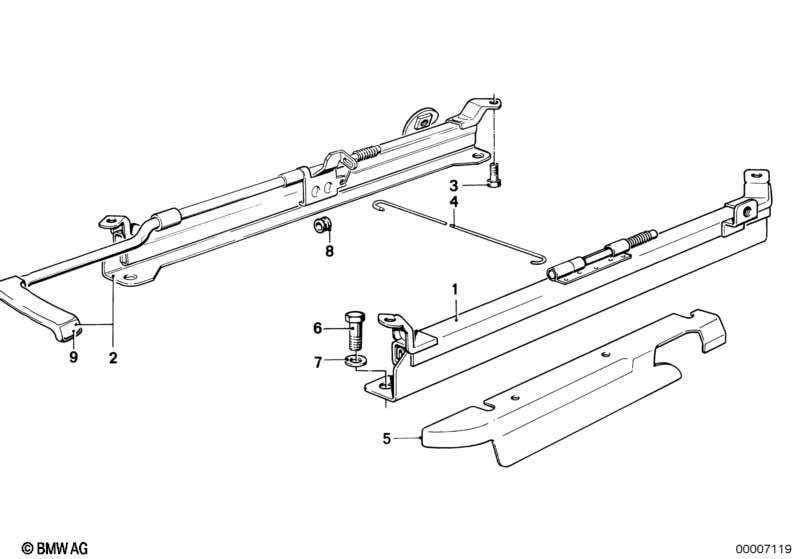

5' E28 525e Front seat rail

Front seat rail
No. Description Supp. Qty  From   Up To  Part Number Price Notes
ONLY APPLIES TO CO-DRIVERS SIDE
01 Seat rail outer right 1 09/1984 52101873550 $252.72
02 Seat rail inner right 1 09/1984 52101873552 $59.36
03 Hex bolt M6X18 X 09/1984 52101817572 $0.26 ENDED
04 Connection rod, seat catch, right 1 09/1984 52101877336 $1.64 ENDED
05 Covering outer right ANTHRAZIT 1 09/1984 52101873514 $8.99
05 Covering outer right NUTRIA 1 09/1984 52101912382 $11.05 ENDED
05 Covering outer right PERLBEIGE 1 09/1984 52101912384 $8.99
05 Covering outer right PACIFIC 1 09/1984 52101929080 $5.58
05 Covering outer right PINIENGRUEN 1 09/1984 52101929082 $5.58 ENDED
06 Hex bolt M10X25-8.8 ZN X 09/1984 12/1987 07119914114 $0.47 ENDED
06 Hex bolt M10X25 8.8 X 09/1984 12/1987 07119902110 ENDED
06 Hex bolt M10X25 8.8 X 09/1984 07119908569
06 Hex bolt M10X25-8.8 ZN X 09/1984 07119913834 $0.71
07 Wave washer B10-ZN X 09/1984 07119932112 $0.11 ENDED
07 Wave washer B10-ZNS X 09/1984 12/1987 07119932122 $0.38 ENDED
07 Wave washer B10-ZNS3 X 09/1984 07119904463
08 Grommet 1 09/1984 52101807432 $7.28
09 Handle right 1 09/1984 52101873448 $2.88
Notes
  • ENDED = the part has been discontinued (no longer available).
