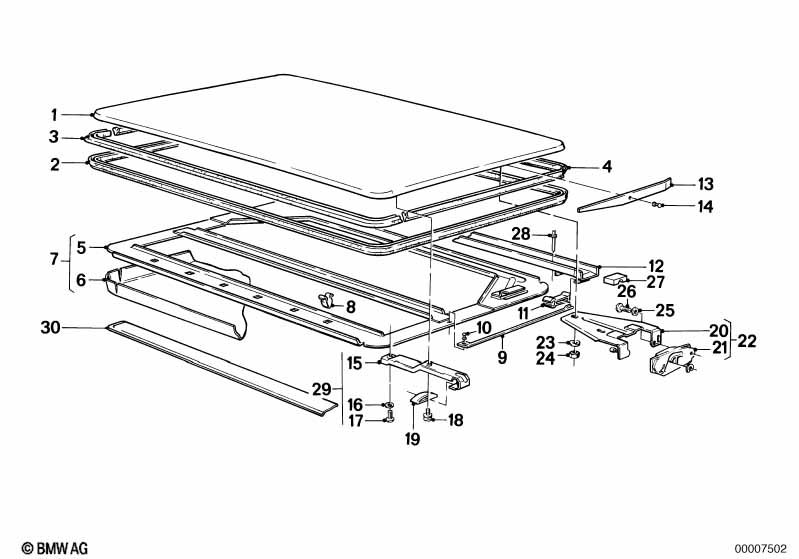

5' E28 525e Slid.lift. roof-cover/ceiling frame

Slid.lift. roof-cover/ceiling frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover 1 12/1982 54121912321 $225.22
For vehicles with
Oglass slid.lifting roof

=Yes
01 Glass cover 1 54121917390 $320.06 ENDED
03 Gasket 990MM 1 54121870086 $32.09
04 Gasket 1775MM 1 54121920052 $55.24
For vehicles with
Oglass slid.lifting roof

=Yes
04 Gasket 1775MM 1 54121920052 $55.24
05 Ceiling frame 1 54121881928 ENDED
07 Ceiling frame covered GRAU 1 09/1982 54121915824 $102.95 ENDED
ONLY APPLIES TO EDITION
07 Ceiling frame covered cloth BEIGE 1 54121915931 $111.24 ENDED
07 Ceiling frame covered cloth GRAU 1 54121915932 $111.24 ENDED
For vehicles with
Oglass slid.lifting roof

=Yes
07 Ceiling frame covered GRAU 1 54121912324 ENDED
08 Clamp 6 54121848635 $4.55
09 Connection piece left 1 54121857141 $7.15
09 Connection piece right 1 54121857142 $7.15
10 Rivet A3X0,5X4-ST 2 07119949613 $0.08 ENDED
10 Rivet A3X0,5X6-ST 2 07119949614 $0.10
11 Sliding jaw 2 54121936899 $2.00 ENDED
11 Sliding jaw 2 54121933099 ENDED
11 Sliding jaw 2 54121933905 $2.30
12 Rain gutter 1 54121849771 $30.34
19 Sliding jaw 2 54121933550 $2.40
27 Supporting bracket 2 54121934933 $0.35
28 Rivet A3X0,5X4-ST 2 07119949613 $0.08 ENDED
30 Slide rail 1 54121921536 $12.27
Notes
  • ENDED = the part has been discontinued (no longer available).
