5' E28 525e Electr.sliding lifting roof operation

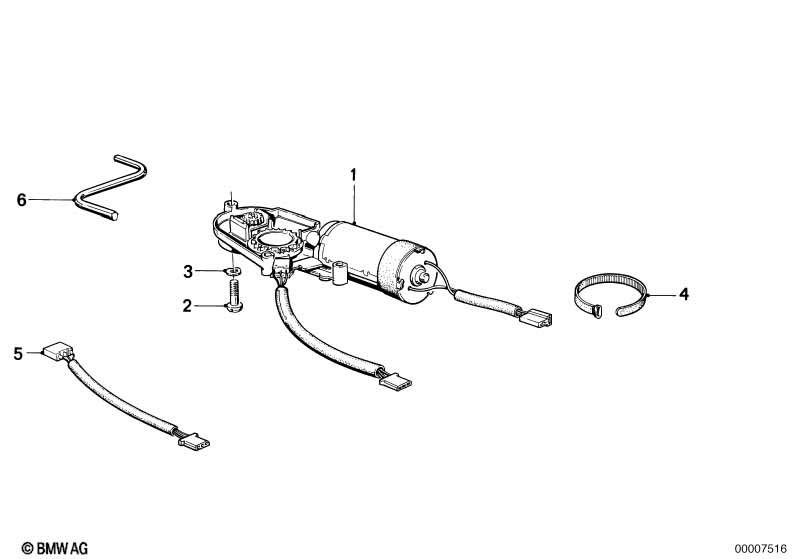

Electr.sliding lifting roof operation
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Electr.sliding-lifting roof transmission 1 54121874871 $299.68
02 Fillister head screw M5X25 3 07119906416 $0.71
03 Wave washer B5 3 12/1987 07119932047 $0.09 ENDED
03 Wave washer B5 3 07119932098 $0.38
04 Cable tie L=292MM/B=4,8MM 4 61131377134 $0.77
05 Microswitch BLAU 1 61311369184 $30.02 ENDED
05 Microswitch SCHWARZ 1 61319056544 $18.02
06 Emergency tool elect.window/sliding roof 1 12/1987 54121873572 $10.05 ENDED
06 Emergency tool elect.window/sliding roof 1 54127199322 $9.78
Notes
  • ENDED = the part has been discontinued (no longer available).
