5' E28 525e Heater-air cond.syst.-water valve/pump

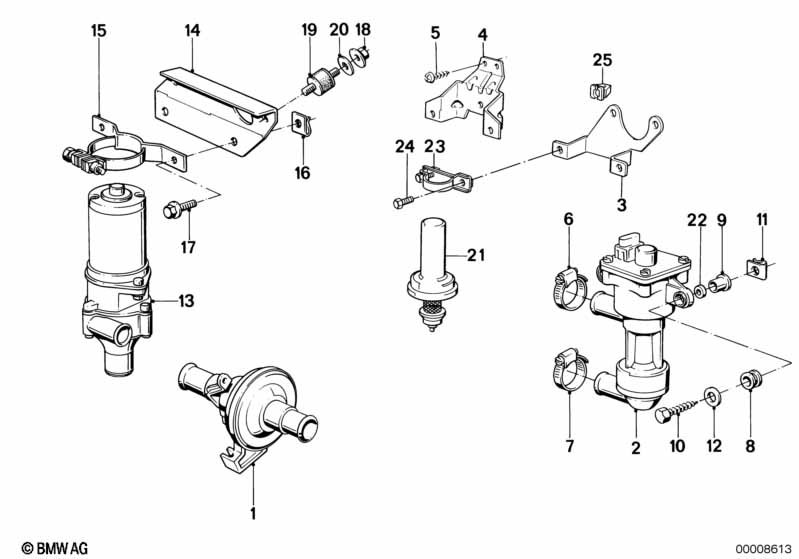

Heater-air cond.syst.-water valve/pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Water valve 1 64111373188 $298.67
For vehicles with
Air bag

=Yes
02 Water valve 1 64111373191 $304.39
03 Holder 1 64111380579 $2.25 ENDED
04 Holder 1 41131886283 $2.02
05 Fillister head self-tapping screw ST3,9X13 1 12/1987 51131823634 $0.19 ENDED
05 Fillister head self-tapping screw ST3,9X13 1 07147202502 $0.26
06 Hose clamp L23-29 X 12/1995 07129952111 $0.93
06 Hose clamp L16-30 X 64218367179 $1.07
07 Hose clamp L28-33 X 07129952113 $0.96
08 Grommet 2 64111369672 $0.88
09 Rivet A6X0,75X10-ST 2 07119949634 $0.30
11 Body nut ST4,2-1 2 05/1999 07129925709 $0.11 ENDED
11 Body nut 4,2-1-ZNS 2 07129901644 $0.09 ENDED
11 Body nut 4,2-1-ZNS3 2 07129904220 $0.09
12 Washer 4,3 2 12/1987 07119936412 $0.09 ENDED
12 Washer 2 07119904207
21 Valve 1 64118390132 $152.65
24 Hex bolt with washer M5X14 1 09/1998 07119915113 $0.24 ENDED
24 Hex bolt with washer M5X14 1 09/1998 07119902007 $0.29 ENDED
24 Hex bolt M5X14-8.8-ZNNIV 1 09/1998 07119904269 $0.36
24 Hex bolt M5X14 1 07119902932 $0.53
25 Expanding nut ST 3.9 1 51711874203 $0.23
Notes
  • ENDED = the part has been discontinued (no longer available).
