5' E28 525e Connection rod/Flap

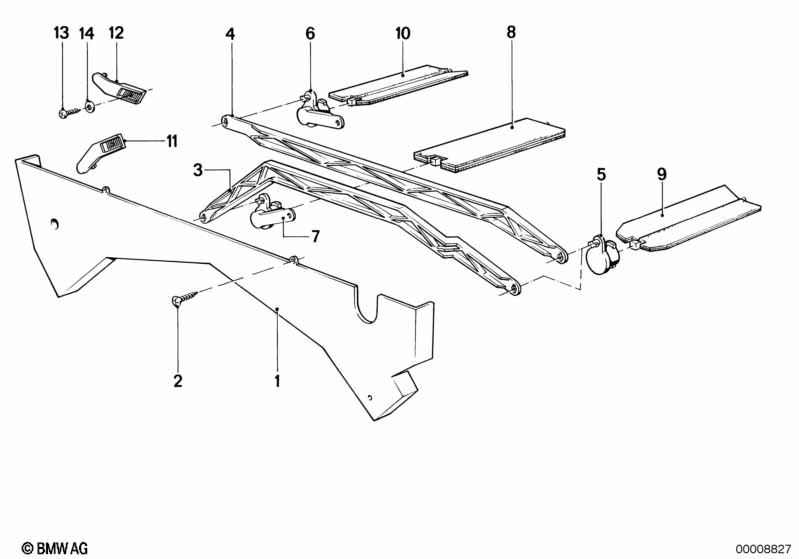

Connection rod/Flap
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover BEHR 1 64111373967 $22.23 ENDED
01 Cover SOFICA 1 64111373968 ENDED
02 Fillister head self-tapping screw ST2,9X6,5 5 07119907906 $0.25
02 Self tapping screw 3,5X10 5 64111380603 $0.59 ENDED
03 Connection rod BEHR 1 64111367741 $7.59 ENDED
03 Connection rod SOFICA 1 64111371194 $7.81 ENDED
04 Connection rod BEHR 1 64111367740 $7.80 ENDED
04 Connection rod SOFICA 1 64111371193 $7.81 ENDED
05 Lever left BEHR 2 64111367731 $41.29 ENDED
05 Lever left SOFICA 2 64111371191 $10.38 ENDED
06 Lever right BEHR 1 64111368012 $3.50 ENDED
06 Lever right SOFICA 1 64111371190 $10.38 ENDED
07 Lever right BEHR 1 64111367732 $25.14 ENDED
07 Lever right SOFICA 1 64111371189 $6.45 ENDED
08 Flap BEHR 2 64111367747 $46.91
08 Flap SOFICA 2 64111371186 $21.43 ENDED
09 Flap left BEHR 1 64111367733 $43.08
09 Flap SOFICA 1 64111371188 $21.43 ENDED
10 Flap right BEHR 1 64111367734 $18.29 ENDED
10 Flap SOFICA 1 64111371188 $21.43 ENDED
11 Connection rod SOFICA 1 64111371196 $15.71 ENDED
12 Connection rod SOFICA 1 64111371195 $15.71 ENDED
13 Fillister head self-tapping screw ST3,5X9,5 2 12/1987 07119906717 $0.25 ENDED
13 Sheet metal screw 3,5X9,5 2 07119904455 $2.45
14 Washer A4,3 2 07119931027 $0.36 ENDED
14 Washer 9X4,3X0,8-200HV 2 07119904205 $0.07
Notes
  • ENDED = the part has been discontinued (no longer available).
