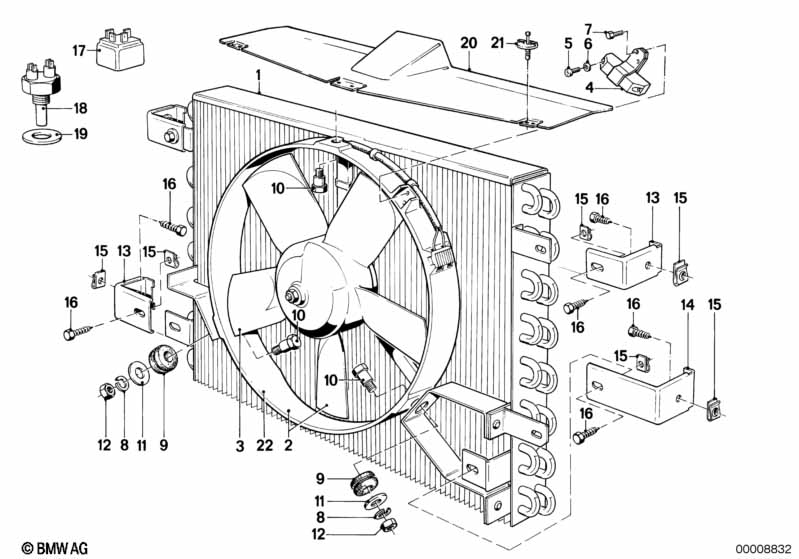

5' E28 525e Climate capacitor/additional blower

Climate capacitor/additional blower
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Condenser 1 09/1984 64531370218 $367.31 ENDED
01 Condenser 1 09/1984 64531370218 $367.31 ENDED
01 Condenser 1 09/1984 64531376470 $440.44 ENDED
01 Condenser 1 09/1984 64531376471 $431.41 ENDED
For vehicles with
Hot-climate version

S823A=Yes
01 Condenser 1 09/1984 64531370218 $367.31 ENDED
01 Condenser 1 09/1984 64531370218 $367.31 ENDED
01 Condenser 1 09/1984 64531376470 $440.44 ENDED
01 Condenser 1 09/1984 64531376471 $431.41 ENDED
02 Blower unit 1 09/1984 17401362096 $345.82 ENDED
02 Blower unit 1 09/1984 17401362096 $345.82 ENDED
02 Blower unit 1 09/1984 64541381339 ENDED
02 Blower unit 1 09/1984 64541381339 ENDED
02 Blower unit 1 09/1984 64541377294 $327.85 ENDED
03 Fan wheel BOSCH 1 17401362100 $74.80
03 Fan wheel MAGNA 1 64541377298 $53.29
04 Resistor BOSCH 1 17401373177 $32.10 SI 120787777
04 Repair kit resistor MAGNA 1 64121388069 $58.98
05 Fillister head screw M4X6 2 07119907657 $0.13
06 Washer A4,3 1 07119931027 $0.36 ENDED
06 Washer 9X4,3X0,8-200HV 1 07119904205 $0.07
07 Hex bolt M5X10 1 07119913218 $0.12
08 Spring washer B5 3 07119933060 $0.11
09 Rubber grommet 3 17401362128 $3.37
10 Fit bolt M5 3 17401354522 $1.17
11 Washer 3 17401354523 $0.63
12 Hex nut M5 3 07119922038 $0.09
13 Holder 3 64531367914 $1.22
14 Holder 1 64531367915 $1.22
15 Body nut ST6,3-2 X 07129925743 $0.13 ENDED
15 Body nut ST6,3-2-ZNS3 X 07129904232 $0.16
15 Body nut B6,3-6 X 16111152613 $0.35
16 Hex head screw ST6,3X16-C-Z2 X 07119916966 $0.27
17 Relay GELB 2 61311373585 $23.75 ENDED
17 Mini-relay 2 61311373588 $11.38
18 Temperature switch 91CEL 1 61311364272 $29.04 SI 120787777
18 Temperature switch 99CEL 1 61311364273 $29.04
19 Gasket ring A14X20-VF 2 07119963227 $0.18
20 Cover 1 09/1984 64531371710 $6.31 ENDED
20 Cover 1 09/1984 64531371710 $6.31 ENDED
20 Cover 1 09/1984 51711929356 $28.57 ENDED
21 Expanding rivet 2 09/1984 51481884779 $0.57
21 Expanding rivet 2 09/1984 51481884779 $0.57
21 Expanding rivet 2 09/1984 51481904142 $0.57
21 Expanding rivet 2 09/1984 51481904142 $0.57
22 Fan shroud BOSCH 1 17401371261 $154.88 ENDED
22 Fan shroud MAGNA 1 64541381649 $59.45
22 Fan shroud BOSCH 1 64541381650 $130.21 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
