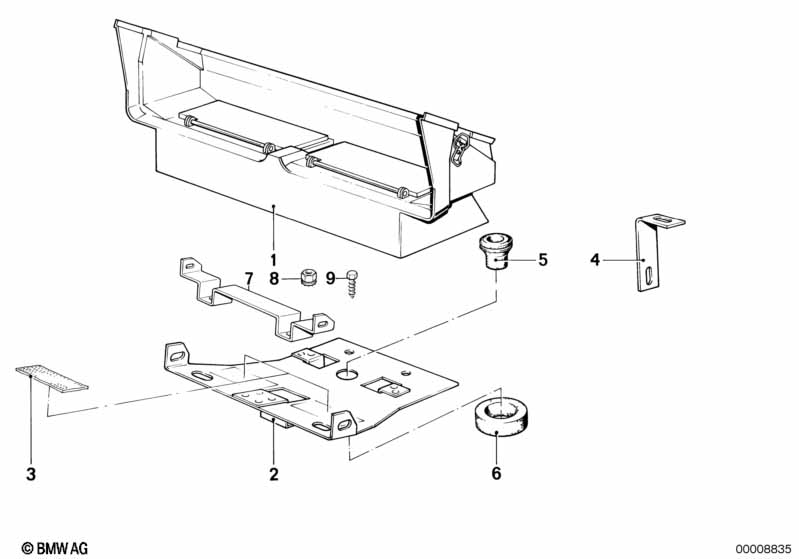

5' E28 525e Air conditioning system mounting parts

Air conditioning system mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Covering piece 1 64501376016 $46.93 ENDED
02 Base plate 1 08/1984 64511356033 $30.39 ENDED
02 Base plate 1 08/1984 64511356033 $30.39 ENDED
03 Felt strip 2 08/1984 64511372091 $0.85 ENDED
03 Felt strip 2 08/1984 64511372091 $0.85 ENDED
04 Support 1 64511362134 $2.81
05 Grommet 1 08/1984 64511356039 $1.46
05 Grommet 1 08/1984 64511356039 $1.46
06 Rubber seal 1 08/1984 64511352205 $3.43
06 Rubber seal 1 08/1984 64511352205 $3.43
07 Holder 1 08/1984 64511376129 $38.22
08 Locknut M6 ZN X 61611356101 $0.40 ENDED
08 Self-locking hex nut M6 X 51417053138 $0.38
09 Hex head screw ST4,8X13-C-Z1 4 07119916939 $0.18 ENDED
09 Hex head screw ST4,8X13-C-U1-Z 4 07119906128 $0.18
Notes
  • ENDED = the part has been discontinued (no longer available).
