5' E28 525e Connection Independent heater

Connection Independent heater

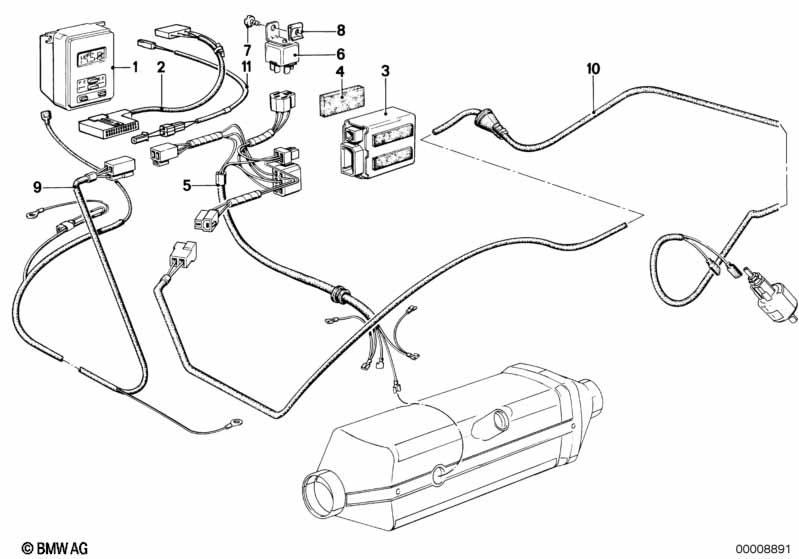

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Digital clock-timer f. additional heater 24H LCD 1 62131370445 ENDED
02 Wiring clock/additional heater 1 61111369926 $43.25 ENDED
03 Control unit auxiliary heater 1 64121376694 $333.12 ENDED
04 Gasket 1 64111355685 $0.66 ENDED
05 Wiring additional heater 1 61121371359 $141.73 ENDED
06 Relay 1 06/1978 61321358193 $21.71 ENDED, +core
06 Relay 1 61321358198 +core
07 Fillister head self-tapping screw ST4,8X13 1 07119907786 $0.11
08 Body nut ST4,8-1 1 12/1987 07129925735 $0.18 ENDED
08 Set body nut 25 ST4,8-1 1 12/1987 07509063124 ENDED
08 Body nut ST4,8-1-ZNS 1 12/1987 07129901647 $0.11 ENDED
08 Body nut ST 4,8 1 12/1987 07129904222 $0.11 ENDED
08 Plug-in nut M5 1 46637651465 $1.29
09 Wiring additional heater 1 61121371243 $28.74 ENDED
10 Cable electr.petrol pump 1 61121365366 $21.99 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
