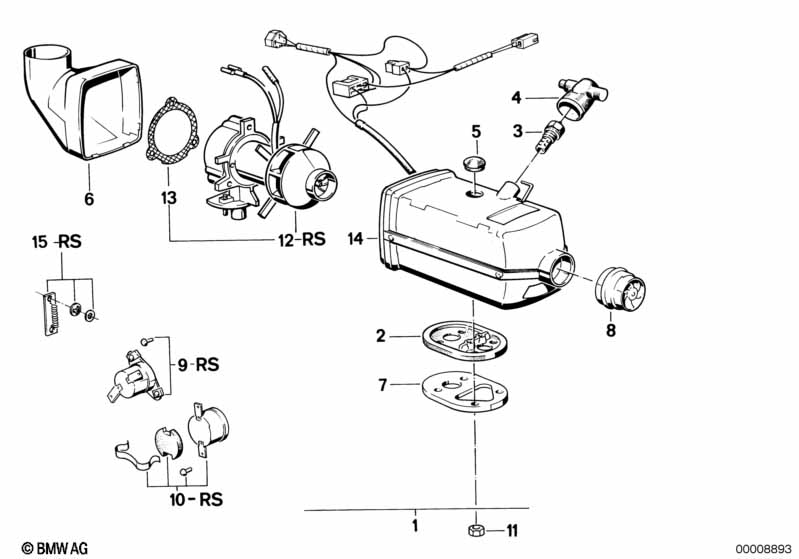

5' E28 525e Single components f Independent heater

Single components f Independent heater
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Heater 1 64121371348 ENDED
02 Gasket 1 64121365148 $24.27 ENDED
03 Glow plug 1 64121365673 $32.09
04 Covering cap 1 64121365672 $22.10 ENDED
05 Covering cap 1 64121365587 $2.73 ENDED
06 Air outlet 1 64121371349 $28.74 ENDED
07 Base plate 1 64121371360 $8.19 ENDED
08 Protection grid f additional fan 1 64121373994 $11.27 ENDED
09 Repair kit circuit breaker 1 64121371020 ENDED
10 Repair kit temperature sensor 1 64121371019 ENDED
11 Hex nut M6-Z2 4 12/1987 51451868108 $0.50 ENDED
11 Hex nut with plate M6 4 07147134319 $1.05
12 Repair kit blower 1 64121371021 ENDED
13 Gasket 1,0MM 1 64121371018 ENDED
13 Gasket 1,5MM 1 64121372963 $3.35 ENDED
14 Housing 1 64121373066 ENDED
15 Repair kit resistor 1 64121373062 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
