5' E28 525e Suction device with pre-supply pump

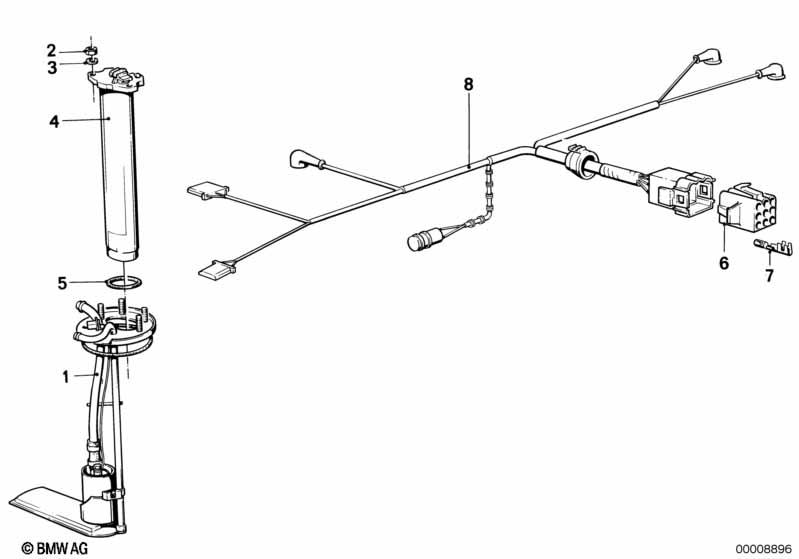

Suction device with pre-supply pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Suction device with pre-supply pump 1 16141179424 $295.22
02 Hex nut M5 4 07119922038 $0.09
03 Washer A5,3-140 HV-ZNS 4 12/1987 07119931029 $0.40 ENDED
03 Washer 10X5,3X1-200 HV 4 07119904206
03 Washer 5,3-140 HV-ZNS 4 07119936439 $0.40
03 Washer 5,3 SW 4 12/1987 07119931030 $1.34 ENDED
03 Washer A5,3-ZNS 4 07119902255 ENDED
04 Sending unit assy metal tank 1 16121153050 $138.71
05 Gasket ring 1 16121150391 $4.18
06 Plug housing 1 61131360502 $6.47 ENDED
07 Cable socket round female D3,5 8 61131359289 $0.63
08 Wiring additional fuel pump 1 61121371869 $135.04 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
